Putzmeister M42-4

KDV hariç fiyat

Images24Videos1

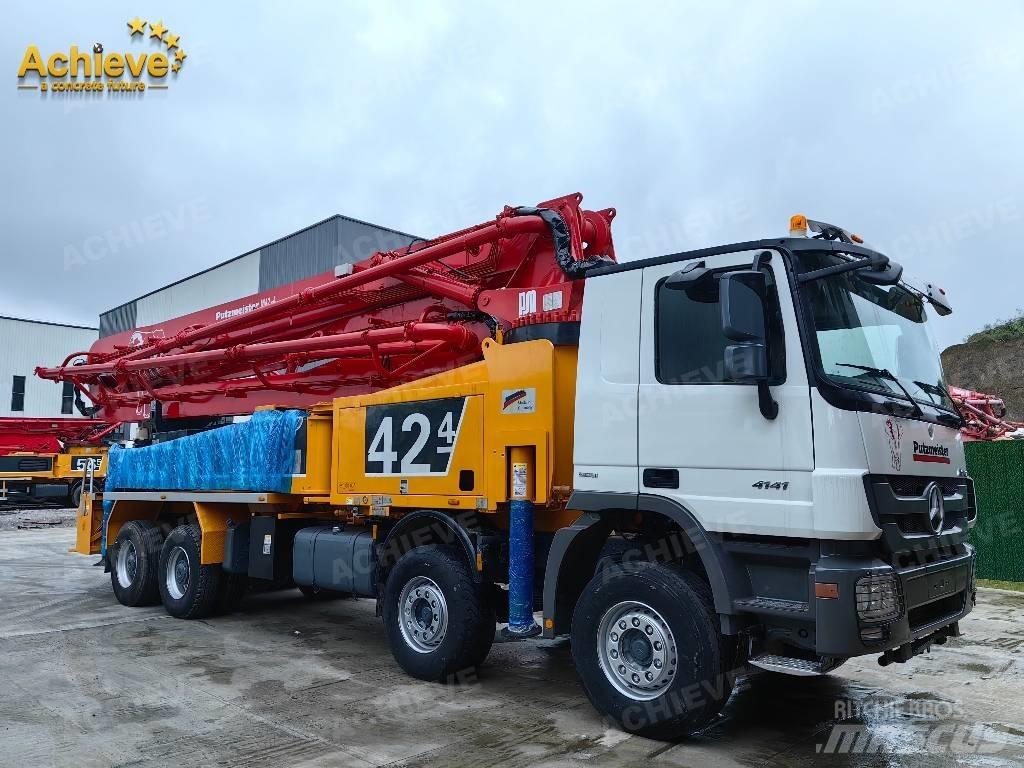

Putzmeister M42-4 Beton pompaları
Putzmeister M42-4 Beton pompaları
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Beton pompaları
Marka / model
Putzmeister M42-4
Kayıt yılı
2014
Kullanım saati
3.000 h
Durum
Yenilenmiş,Remanufactured
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
C8CCEE59

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Stok no.
AICPT010
Number of boom sections
5
Son ekspertiz
2024-09-26
Brüt ağırlık
26.000 kilogram
Bom uzunluğu
400 santimetre
Max horizontal reach
3.730 santimetre
Max vertical reach
4.160 santimetre
Hareket tipi
Sabit
Pompa güç tipi
Dizel
Pompa bilgileri
300 kW
Taşıma Ölçüleri (EnxBoyxYükseklik)
11500 x 2500 x 4200 mm
Emisyon sınıfı
Stage V / Tier V
Motor üreticisi
Ergonic3. EU Version
Pump type
Piston
Şasi üreticisi
Mercedes Benz
Lastik markası
Mercedes Benz
Production country
Çin
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Ataşmanlar
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Diğer bilgiler
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliDiğerlerini göster

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Çin
