Putzmeister M46-5

KDV hariç fiyat

Images58Videos1

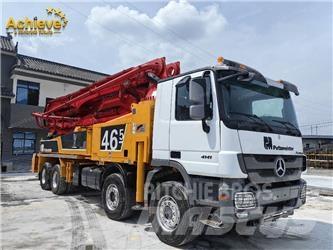

Putzmeister M46-5 Beton pompaları
Putzmeister M46-5 Beton pompaları
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Beton pompaları
Marka / model
Putzmeister M46-5
Kayıt yılı
2013
Kullanım saati
3.000 h
Durum
Yenilenmiş,Remanufactured
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
FF862F64

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Stok no.
AICPT016
Number of boom sections
5
Son ekspertiz
2024-09-26
Brüt ağırlık
32.000 kilogram
Bom uzunluğu
300 santimetre
Max horizontal reach
4.110 santimetre
Max vertical reach
4.610 santimetre
Hareket tipi
Sabit
Pompa güç tipi
Dizel
Pompa bilgileri
300 kW
Taşıma Ölçüleri (EnxBoyxYükseklik)
11850 x 2500 x 4000 mm
Emisyon sınıfı
Stage V / Tier V
Motor üreticisi
Ergonic3. EU Version
Pump type
Piston
Şasi üreticisi
Mercedes Benz
Lastik markası
Mercedes Benz
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Ataşmanlar
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Diğer bilgiler
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducDiğerlerini göster

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Çin
