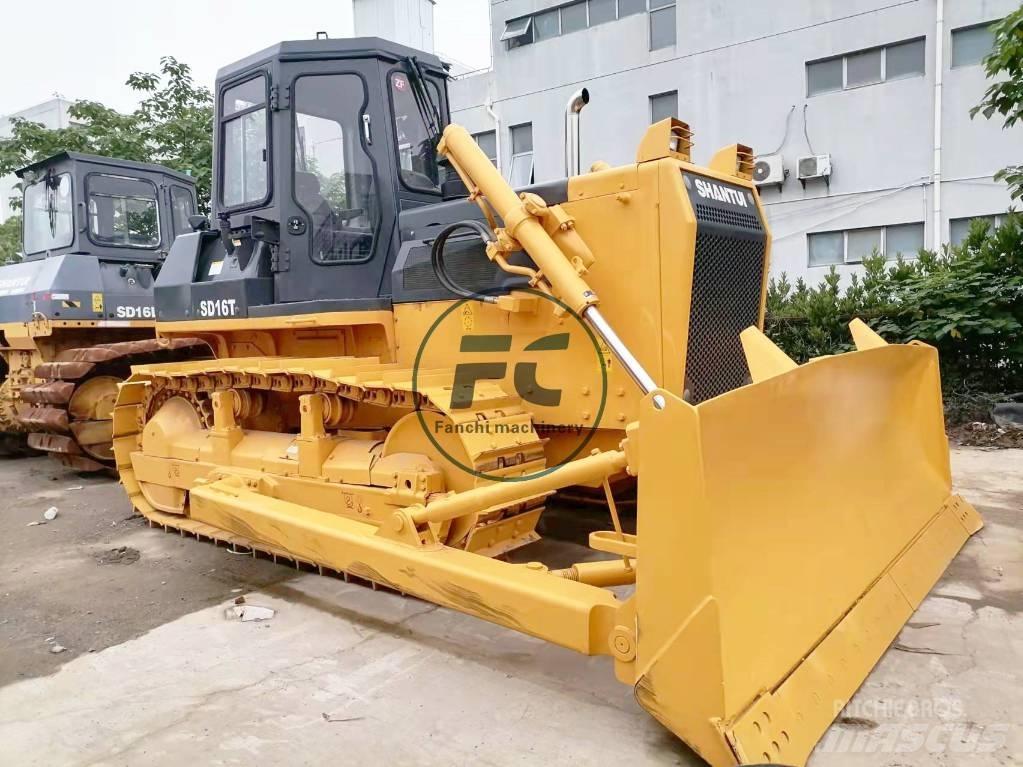

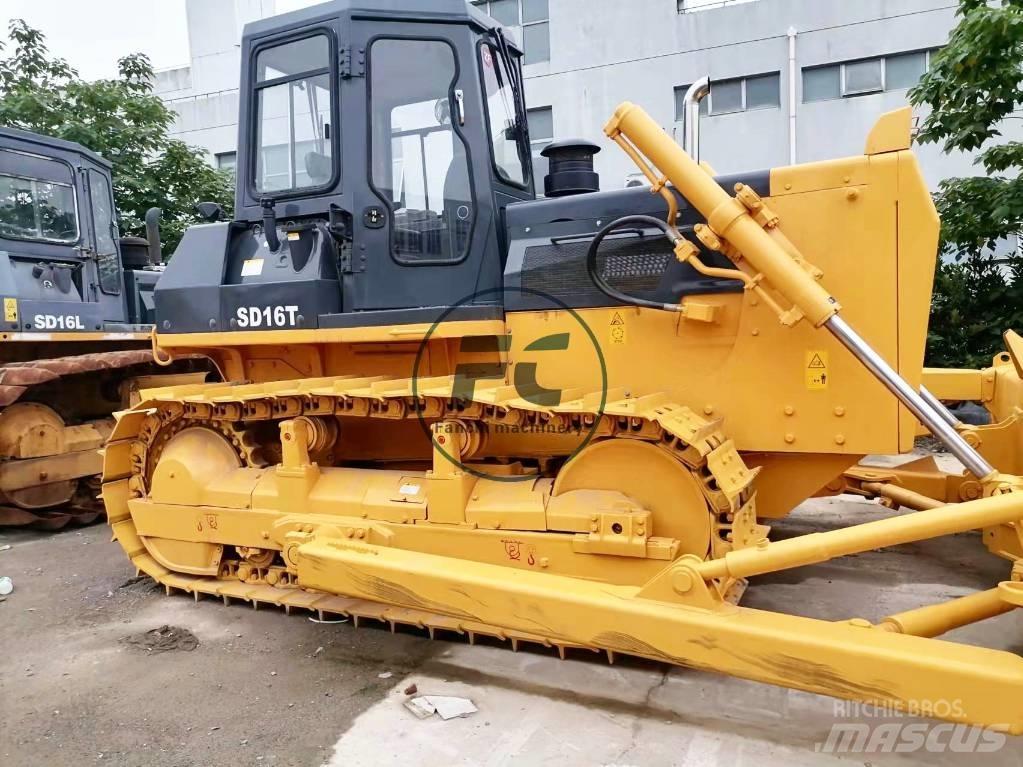

Shantui SD 16T

Name: Shantui SD 16T
Brand: Shantui
SKU: 1CF1AF32
Price: 236100 CNY
Availability: InStock

KDV hariç fiyat

Favori

Aramayı kaydet

Yazdır

BILGI

Ürün grubu

Paletli dozerler

Marka / model

Shantui SD 16T

Kayıt yılı

2024

Kullanım saati

413 h

Ülke

Çin

Genel durum düzeyi

Mascus ID

1CF1AF32

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Güç tipi

Dizel

Önceki sahiplerin sayısı

Brüt ağırlık

17.000 kilogram

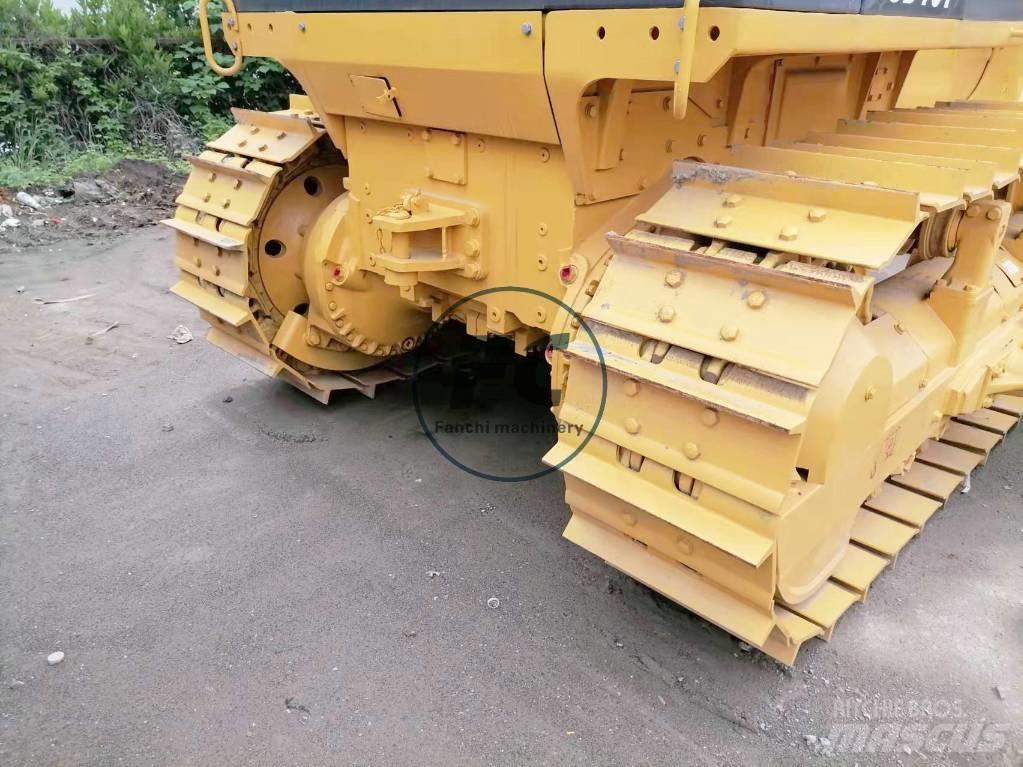

Yürüyen aksam

Paletli

Kabin tipi

Kapalı kabin

Motor gücü

131 kW (178 hp)

Taşıma Ölçüleri (EnxBoyxYükseklik)

5.140×3.455×3.032 m

Orijinal renk

YELLOW

Production country

Çin

Equipped for

propertynames.pp_equippedfor_2100011

Delivery terms

FOB, EXW

Certificates

EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME

Aksesuarlar

Ek hidrolikler

Motor Isıtıcısı

Diğer bilgiler

The Shantui SD16T is a 160-horsepower mechanical drive bulldozer engineered for versatility and efficiency across various earthmoving and construction applications. Building upon the foundation of the SD16 series, the SD16T offers enhanced features tailored to meet diverse operational needs. Key Features: 1. Engine & Performance Engine Model: Weichai WP10 Henan Harvest Machinery & Truck Co., Ltd +2 product.global-ce.com +2 machplaza.com +2 Rated Power: 131 kW (approximately 175 hp) @ 1,850 rpm Fuel Efficiency: Designed for optimal fuel consumption, balancing power output with economical operation. 2. Operating Weight & Dimensions Operating Weight: Approximately 17,000 kg (37,478 lbs) Dimensions (L × W × H): 5,140 mm × 3,455 mm × 3,032 mm Ground Pressure: Approximately 58 kPa, suitable for various terrains. machplaza.com +1 product.global-ce.com +1 3. Transmission & Undercarriage Transmission Type: Planetary gear with multi-disc clutch, hydraulically connected, featuring forced lubrication. shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Speeds: Forward: 2.67 km/h to 11.13 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Reverse: 3.48 km/h to 9.92 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Track System: Track Gauge: 1,880 mm Shoe Width: 510 mm (options for 560 mm and 610 mm) Ground Contact Length: 2,430 mm 4. Blade & Ripper Specifications Blade Type: Straight tilt blade Blade Capacity: Approximately 3.8 m³ lectura-specs.com +2 shantuibj.en.made-in-china.com +2 Alibaba +2 Blade Dimensions: Width: 3,388 mm; Height: 960 mm shantuibj.en.made-in-china.com +1 lectura-specs.com +1 Maximum Digging Depth: 540 mm lectura-specs.com +2 工业目录 +2 product.global-ce.com +2 Ripper Type: Optional three-shank ripper shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Maximum Ripping Depth: 570 mm 5. Operator Comfort & Controls Cabin: Ergonomically designed for operator comfort, featuring intuitive controls and ample visibility. Steering & Braking: Equipped with wet multiple disc clutches and hydraulically actuated brakes for precise maneuvering. machinery-trucks.com +1 shantuibj.en.made-in-china.com +1 6. Durability & Maintenance Robust Construction: Built with high-quality materials to withstand rigorous working conditions. Maintenance Access: Designed for ease of serviceability, reducing downtime and operational costs. Applications ✔ Earthmoving: Efficiently handles tasks such as grading, leveling, and soil redistribution.✔ Construction: Ideal for site preparation, road building, and infrastructure projects.✔ Mining & Quarrying: Capable of managing overburden removal and material transportation.✔ Agriculture: Useful for land clearing, terracing, and other large-scale farming operations. Summary The Shantui SD16T bulldozer combines power, precision, and durability, making it a reliable choice for a wide range of construction and earthmoving projects. Its mechanical drive system, coupled with user-friendly controls and robust build, ensures high productivity and longevity in various working environments.Diğerlerini göster

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Çin
