Üretici seri no.
EW55BY30479
Hasarlı
Amaçlanan performansla çalışıyor
Brüt ağırlık
5.240 kilogram
Yardımcı hidroliklerin çıkışı
109 l/dak
Taşıma Ölçüleri (EnxBoyxYükseklik)
5913.12 x 1950.72 x 2560.32 mm
Motor gücü
39,7 kW (54 hp)
Kalan ön lastikler / şasi
75
Production country
Güney Kore
Diğer bilgiler

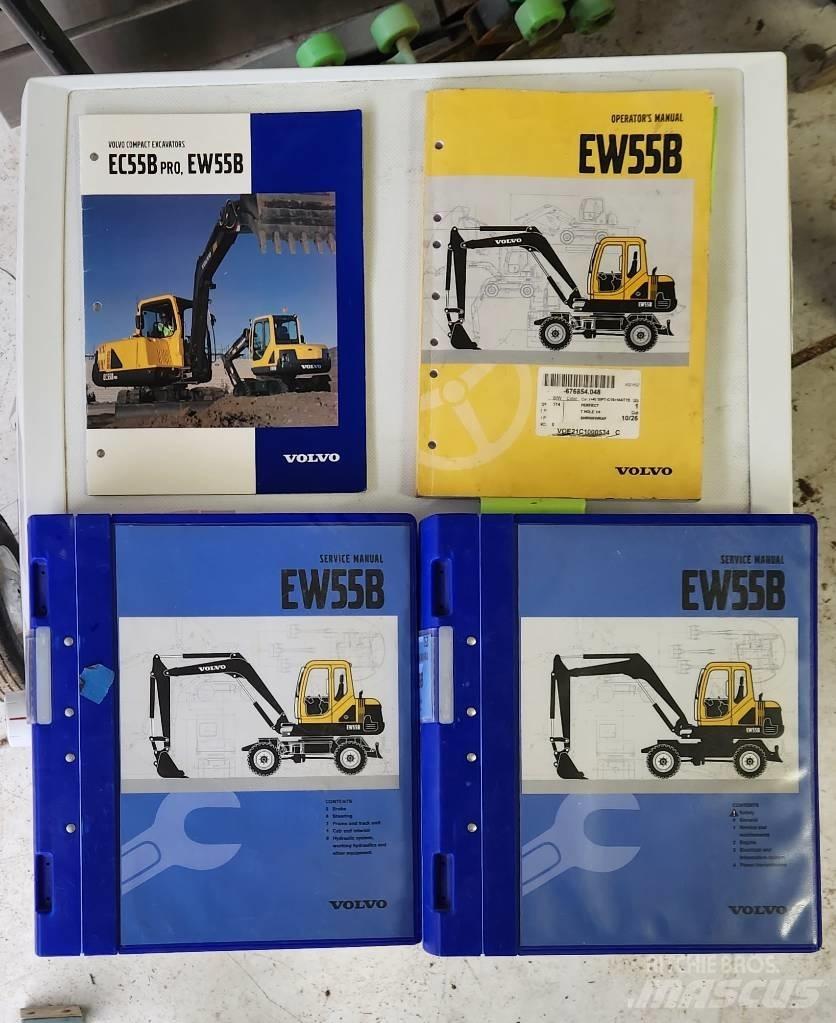

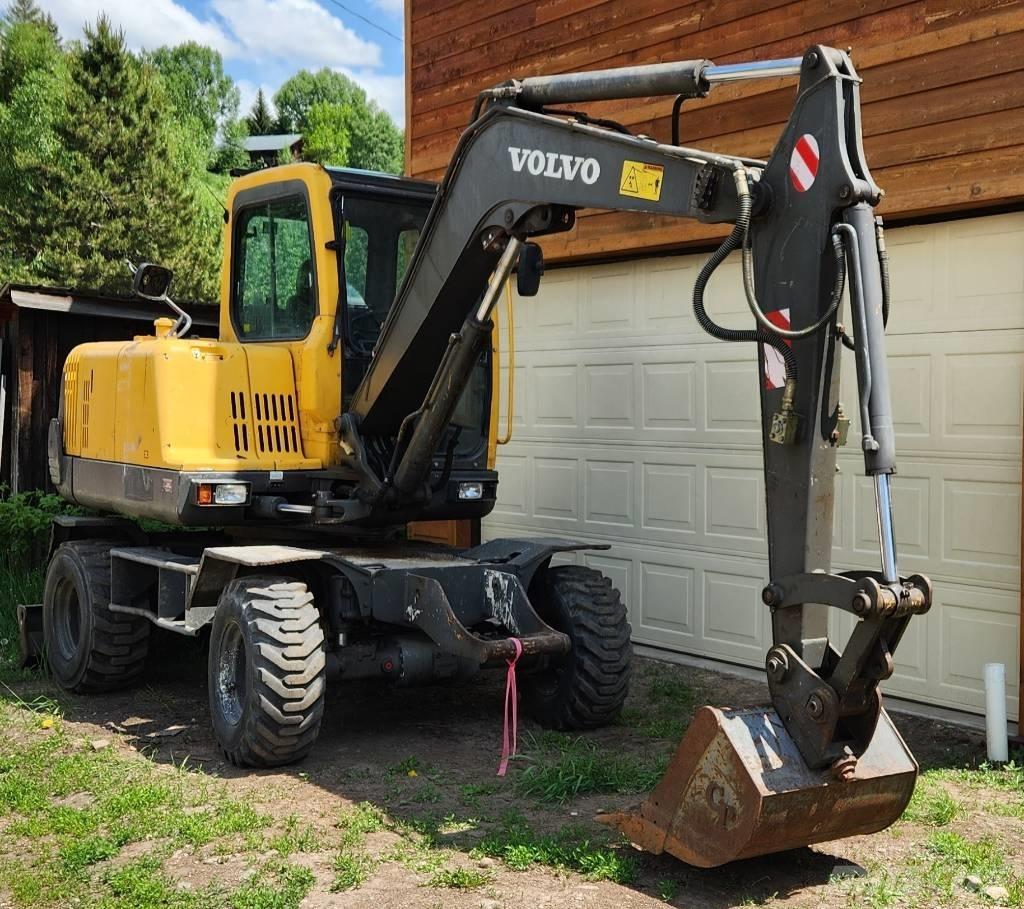

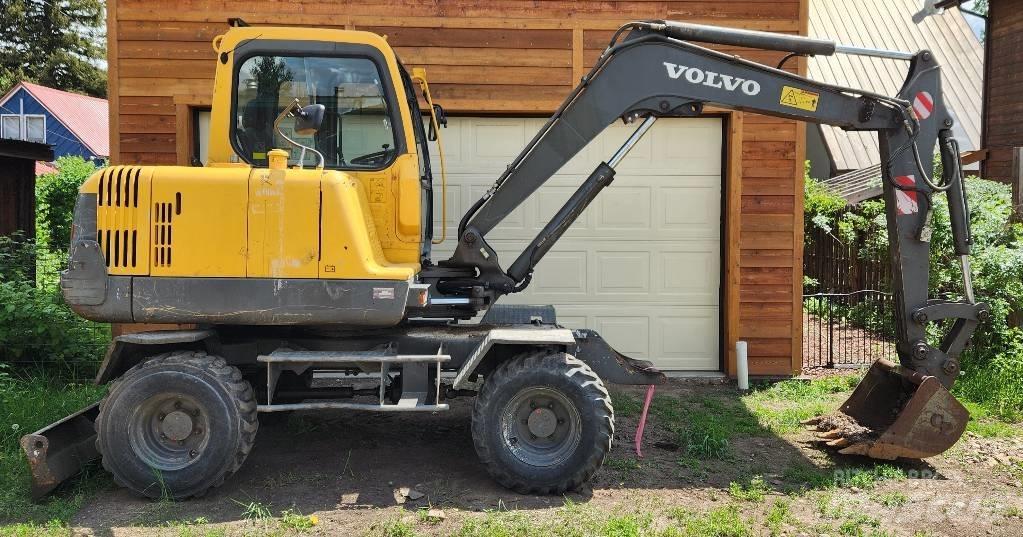

2007-2008 EWB55 compact wheeled excavator with blade and detachable bucket in great shape. Only 874 hours. Includes Service, Operators manuals and specifications brochure as shown in pictures. Fully functional and ready to work.
Boom/Stick Mobile Excavator Specifications:
Max Cutting Height 19 ft (6 m)
Max Digging Depth 12.6 ft (4 m)
Max Loading Height 13.5 ft (4 m)
Max Reach Along Ground 19.7 ft (6 m)
Max Vertical Wall Dig Depth 8.6 ft (2 m)
Shipping Height of Unit 8.4 ft (2 m)
Shipping Length of Unit 19.4 ft (6 m)
Boom/Stick Mobile Excavator Option 2
Max Cutting Height 19.8 ft (6 m)
Max Digging Depth 13.8 ft (4 m)
Max Loading Height 14.2 ft (4 m)
Max Reach Along Ground 20.8 ft (6 m)
Max Vertical Wall Dig Depth 9.9 ft (3 m)
Shipping Height of Unit 8.4 ft (2 m)
Shipping Length of Unit 19.4 ft (6 m)
Bucket
Maximum Bucket Capacity 0.4 cu yds (0 m)
Minimum Bucket Capacity 0.1 cu yds (0 m)
Reference Bucket Capacity 0.2 cu yds (0 m)
Dimensions
Ground Clearance 1.2 ft (0 m)
Height - Top of Cab 8.4 ft (2 m)
Overall Width 6.3 in (15 cm)
Tail Swing Radius 5.5 ft (2 m)
Upper Structure Clearance 2.3 ft (1 m)
Wheelbase 6.4 ft (2 m)
Engine
Aspiration Natural
Displacement 186.3 cu in (0 m)
Engine Model D3.1A
Gross Power 54 hp (40 kw)
Net Power 51 hp (38 kw)
Net Torque 147.6 lbs/ft
Number of Cylinders 4
Power Measured @ 2200 rpm
Torque Measured @ 1400 rpm
Operating Specifications
Alternator Supplied Amperage 55 A
Cooling System Fluid Capacity 3.2 gal (11 l)
Engine Oil Capacity 2.7 gal (8 l)
Fuel Capacity 23.8 gal (87 l)
Hydraulic Pump Flow Capacity 29 gal/min (110 l/min)
Hydraulic Pump Type variable displacement double pump
Hydraulic System Fluid Capacity 34.4 gal (129 l)
Hydraulic System Relief Valve Pressure 3045 psi
Operating Voltage 12 V
Operating Weight 11552.3 lbs (5,240 kg)
Tire Size 12x16.5 12PR
Transmission
Max Travel Speed 18.6 mph (29 kph)
Number of Forward Gears 2
Number of Reverse Gears 2
Transmission Type hydrostaticDiğerlerini göster
