BILGI

Ürün grubu
Isıtma ve çözme ekipmanı
Marka / model
Frick RWF II 399H
Kayıt yılı
2010
Durum
Used
Makinenin yeri
Langley, British Columbia
Ülke
Kanada
Mascus ID
BD0819CD

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Stok no.
101396
Diğer bilgiler

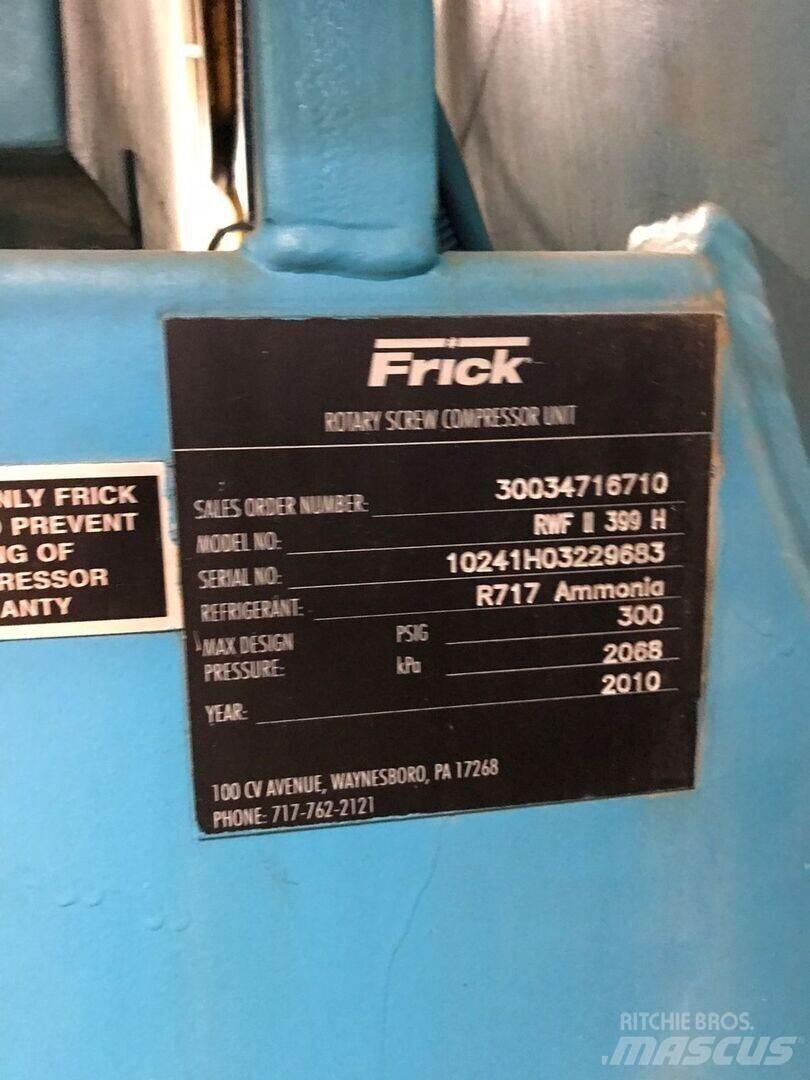

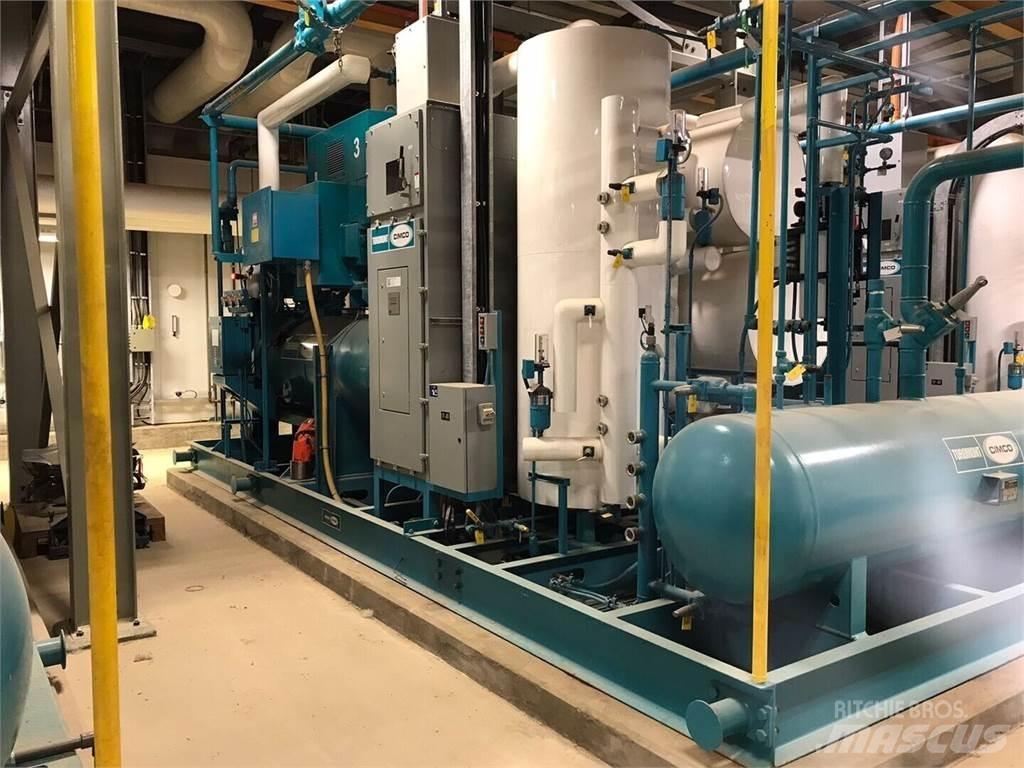

800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package Title: 800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package SKU: 101396 Model: RWF II 399H Year: 2010 Condition: Used ElectricalVoltage:4160volts CFM:2347cfm ** Included Equipment: - One Compressor Package - Three Aircooled Condenser Units [PDF Condenser Units](... Technical Drawings](... Package Package Model: RWF II 399H Refrigerant: R717 Ammonia Max Design Pressure: 300 psig Compressor Model: SGC 2817 Horsepower: 800 hp FLA: 98 A Max. Allowable Pressure: 400 psig Max. Driver Speed: 3580 rpm (3) Aircooled Condenser Units (NH3) Model: S-MCAH 092B/2x5-N(H) Capacity: 1,855,507 Btu/h Air Flow: 155,793 cfm Rated Working Pressure: 464 psi Refrigerant: NH3 Electrical Supply: 575 V, 3-ph, 60 Hz Fan Motor HP: 4 hp Qty Fan Motors Per Condenser: 10 RPM: 910 rpm ** The 50 hp and 25 hp Pump Packages shown in the PDFs above can be purchased at additional cost if desired. ** Contact for more info.Diğerlerini göster

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
