Grove GMK4070
KDV hariç fiyat
Yazdır
BILGI
Ürün grubu
Yol-Arazi Tipi Vinçler (AT)
Marka / model
Grove GMK4070
Kayıt yılı
1999
Makinenin yeri
Arkansas, USA, Arkansas
Ülke
A.B.D.
Genel durum düzeyi
1
2
3
4
5
Mascus ID
E9AF26A9
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
969
Kaldırma kapasitesi
85.000 ton
Kaldırma yüksekliği
38,1 m
Ataşmanlar
https://freecranespecs.com/Grove/GMK4070
Diğer bilgiler

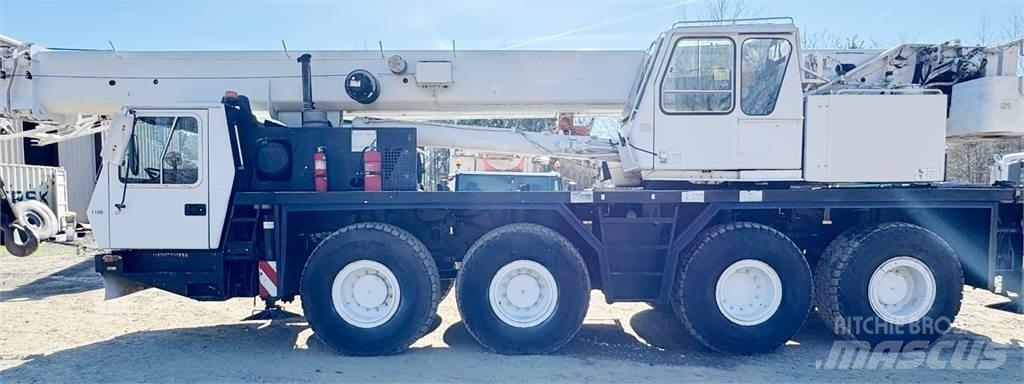

1999 Grove GMK4070, 85 Ton, All Terrain Crane; CranesList ID: 969
38-125’ Five Section Full Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave
32.8'- 52' hydraulic off-settable lattice Swing Away Extension (Jib). Offsettable at 0°, 16°, 30°),
Main and Auxiliary Winches with 19 mm Wire Rope

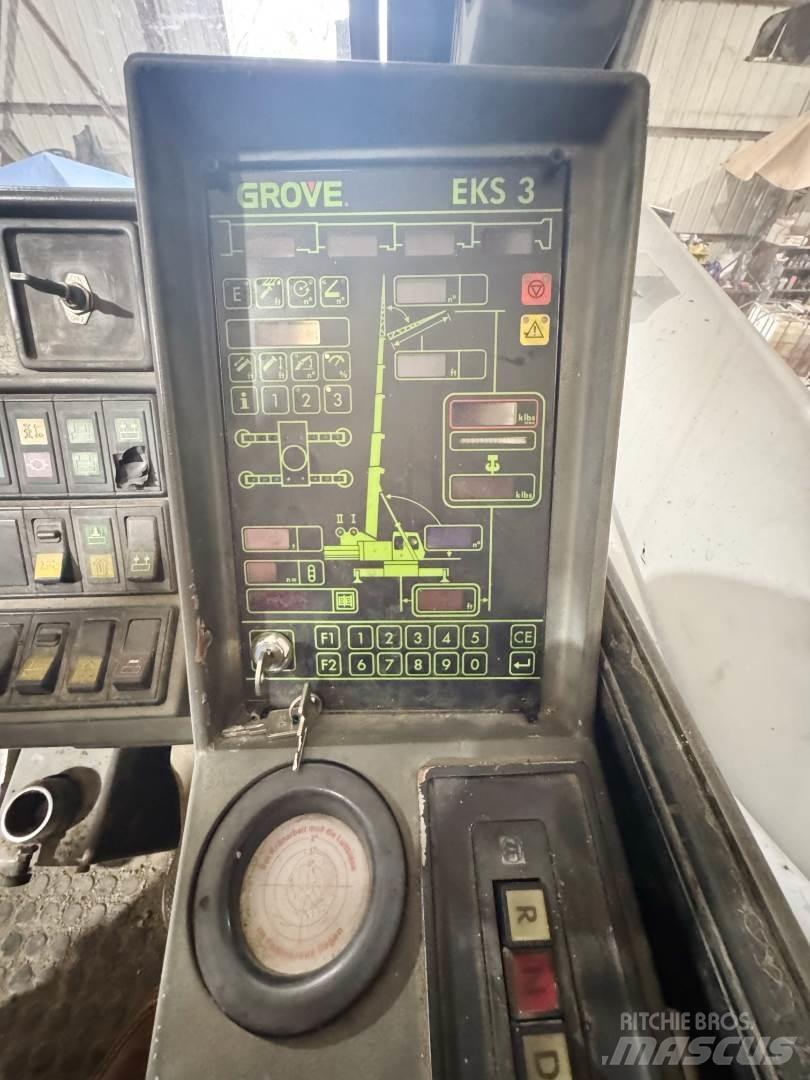

Drum Rotation Indicator, EKS3 Load Moment Indicator (LMI) and independent anti-two block system with audio visual warning and control lever lock-out. These systems provide electronic display of boom angle length, radius, tip height, relative load moment,maximum permissible load, load indication, and warning of impending two-block condition with lock-out hoist function,
Control System: Stepless control of all crane movements using control levers with automatic reset to zero
Hook Ball
Three Sheave Hook Block
29,500# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab

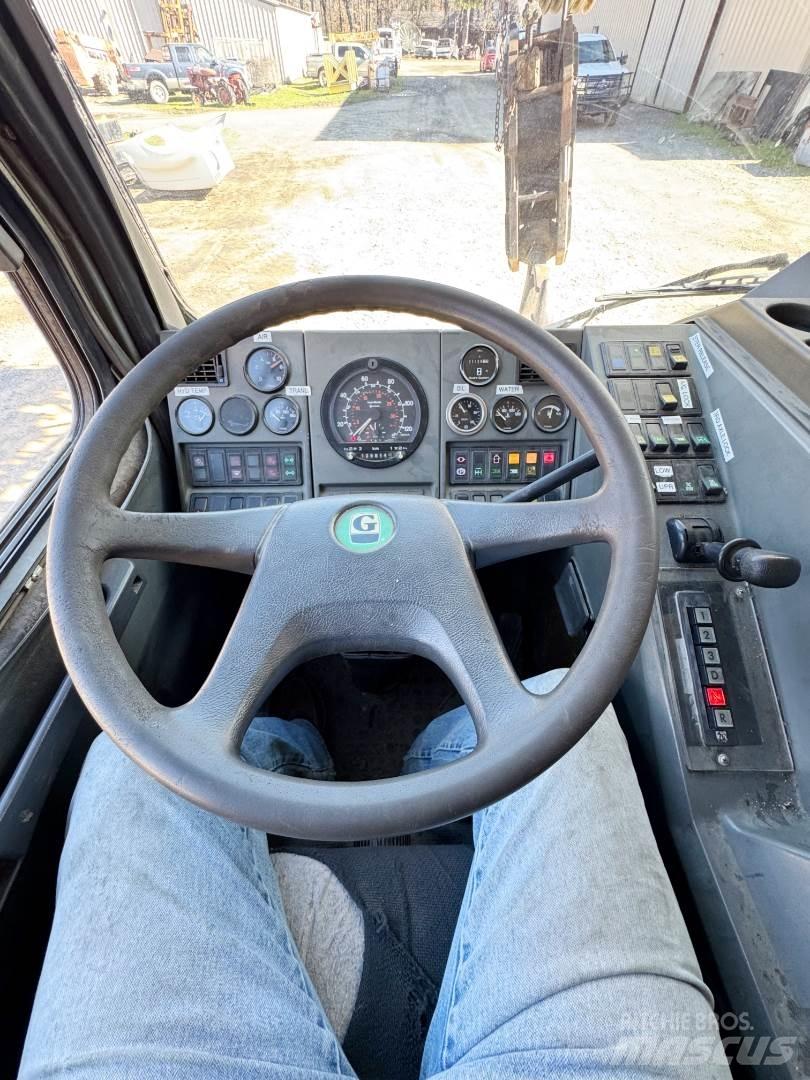

All-aluminum constructed Operator's cab: full vision, safety glass, adjustable operator's seat with hydraulic suspension, engine-independent heater. Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls. Drive/steer controls
8.3' wide Grove Two-man Carrier Cab, Aluminium, 2-man-design, safety glass, driver and passenger seat with hydraulic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls, 8 x 6 x 8 Drive/Steer Carrier
Mercedes-Benz Eight Cylinder Water Cooled, Turbocharged, Diesel Engine - Rebuilt on 5.2020 with only 2,765 Hours since the rebuild - Engine rebuilt in 2020 with 19,250 hours),
ZF Automatic Transmission,
Front and Rear Tires: 14.00 R25
Grove exclusive MEGATRAK Suspension
Outriggers: 4 double hydraulic telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the crane operator's cab. Sight level gauge.
This retail fleet crane is used daily and is fleet maintained
Certified,
... IN ARKANSAS!
