SmartTEH ST-20/750

KDV hariç fiyat

Talep Üzerine Fiyat

Compnay LOGO
Images9

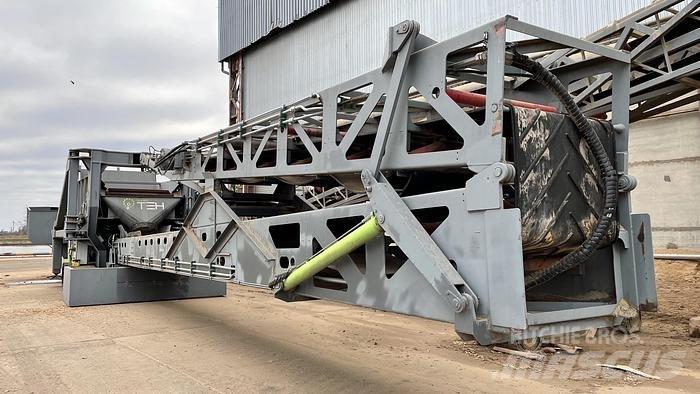

SmartTEH ST-20/750 Konveyörler

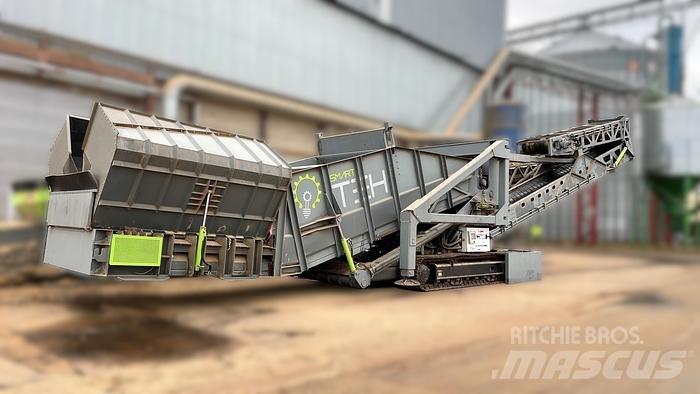

SmartTEH ST-20/750 Konveyörler

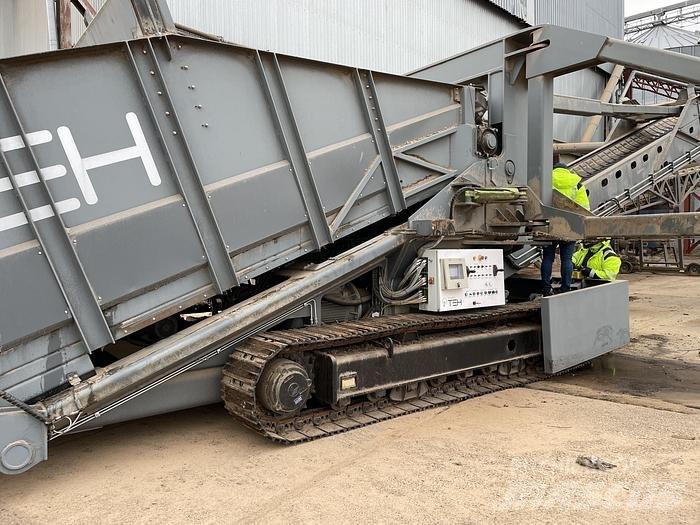

SmartTEH ST-20/750 Konveyörler
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Konveyörler
Marka / model
SmartTEH ST-20/750
Kayıt yılı
2019
Kullanım saati
220 h
Durum
Demo
Ülke
Letonya
Genel durum düzeyi
1
2
3
4
5
Mascus ID
055DF23C

AYRINTILAR

Önceki sahiplerin sayısı
1
Servis geçmişi
Evet
Brüt ağırlık
40.000 kilogram
Hareket tipi
Mobil
Kapasite
750 tn/h
Motor
diesel type KDI
Motor üreticisi
Kohler
Taşıma Ölçüleri (EnxBoyxYükseklik)
28.5 x 3.9 x 3.85 mm
Production country
Letonya
Delivery terms
EXW
Ataşmanlar
remote control, remote diagnistics
Aksesuarlar
kontrol sistemi
Diğer bilgiler
Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAFDiğerlerini göster

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads Letonya
