Geotec ROTOMAX Li

KDV hariç fiyat

Talep Üzerine Fiyat

Images11Videos1

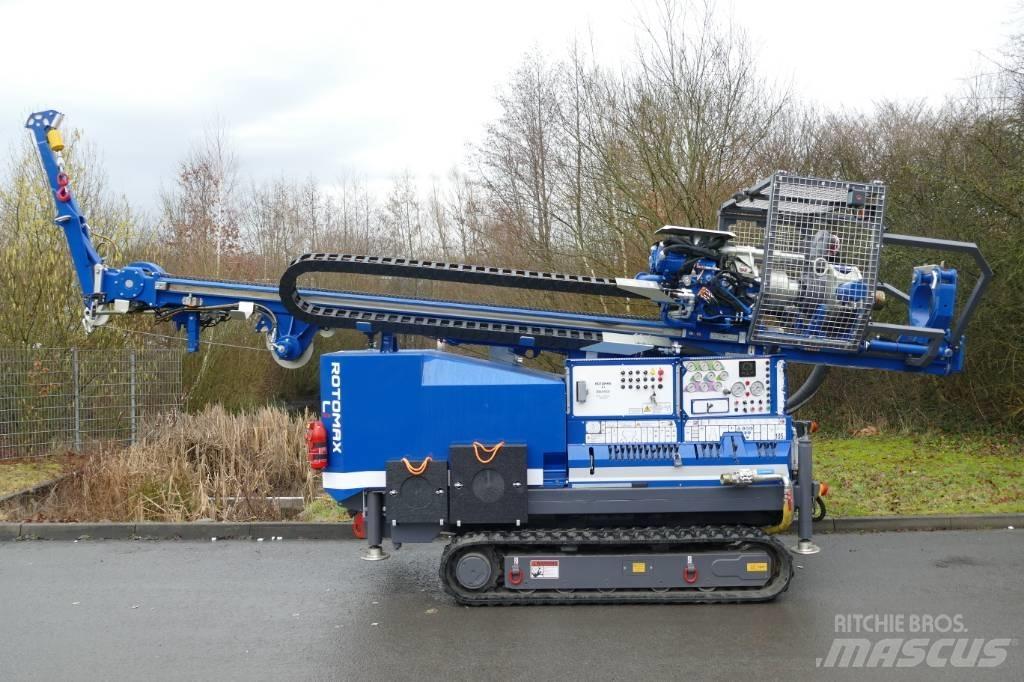

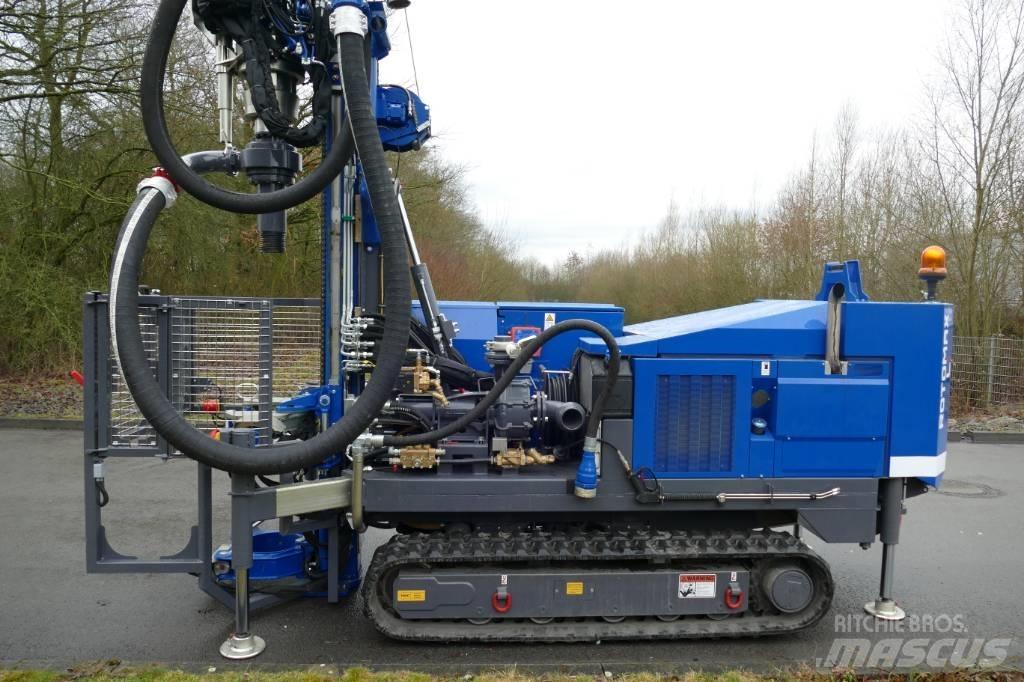

Geotec ROTOMAX Li Kuyu sondaj makinalari
Geotec ROTOMAX Li Kuyu sondaj makinalari
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Kuyu sondaj makinalari
Marka / model
Geotec ROTOMAX Li
Kayıt yılı
2022
Durum
New/unused
Makinenin yeri
Nordkirchen
Ülke
Almanya
Genel durum düzeyi
1
2
3
4
5
Mascus ID
B88F05AC

AYRINTILAR

Son ekspertiz
2022
Servis geçmişi
Evet
Motor
136KM
Motor üreticisi
PERKINS
Emisyon sınıfı
Stage V / Tier V
Soğutma sistemi
Su
Besleme Mekanizması
Cylinder
Vuruş saati
0
Percussion hours
0
Rod İmalatçısı
GEOTEC
Besleme Mekanizması İmalatçısı
GEOTEC
Palet İmalatçısı
GEOTEC
Taşıyıcı tipi
Paletli
Garanti
1000 Hours / 1 Year
Taşıma Ağırlığı
6.000 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
4000 x 1600 x 2400 mm
Kalan ön lastikler / şasi
100
Mevcut arka lastikler
100
Delivery terms
EXW
Diğer bilgiler
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Diğerlerini göster

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Almanya
