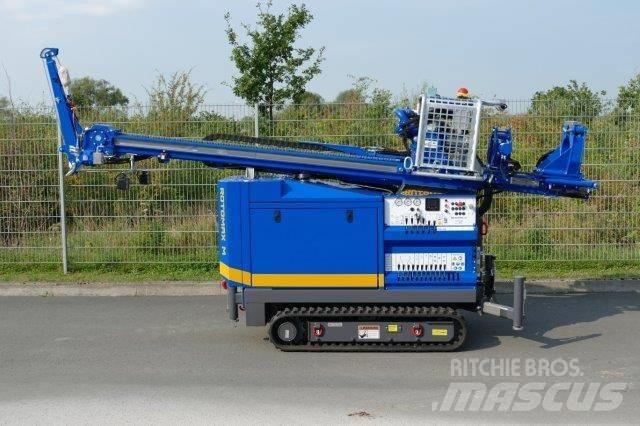

Geotec ROTOMAX M

Name: Geotec ROTOMAX M
Brand: Geotec
SKU: 4B7FFF6E
Availability: InStock

KDV hariç fiyat

Talep Üzerine Fiyat

Favori

Aramayı kaydet

Yazdır

BILGI

Ürün grubu

Kuyu sondaj makinalari

Marka / model

Geotec ROTOMAX M

Kayıt yılı

2022

Durum

New/unused

Makinenin yeri

Nordkirchen

Ülke

Almanya

Genel durum düzeyi

Mascus ID

4B7FFF6E

AYRINTILAR

Servis geçmişi

Evet

Motor

44kW

Motor üreticisi

PERKINS

Delici İmalatçısı

Geotec

Emisyon sınıfı

Stage V / Tier V

Soğutma sistemi

Besleme Mekanizması

Cylinder

Rod İmalatçısı

GEOTEC

Delik çapı

"115-203 mm 4 1/2""-8""

Palet İmalatçısı

GEOTEC

Rod çapı

"140 mm 5 1/2"""

Taşıyıcı tipi

Paletli

Garanti

1000 Motogodzin - 1 rok

Taşıma Ağırlığı

3.000 kilogram

Taşıma Ölçüleri (EnxBoyxYükseklik)

4970 x 1200 x 2150 mm

Certificates

TÜV

Diğer bilgiler

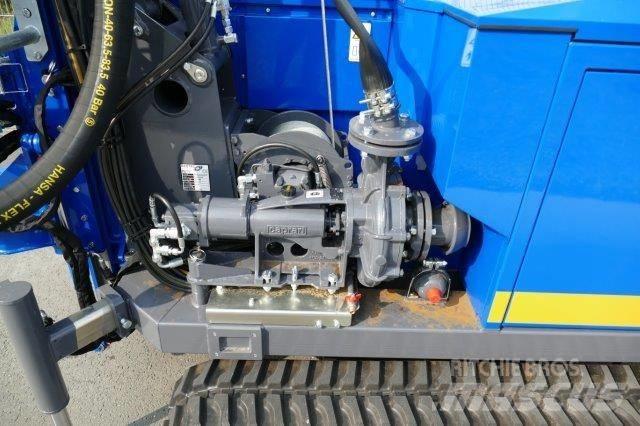

Base frame: Sandwich main base frame with integrated fuel / hydraulic oil tank for about 70 l diesel and about 150 l hydraulic oil (HLP 46) 4 pieces hydraulic cylinder for alignment of the machine; rubber crawler track with 250 mm as ridgid undercarriage 1200 mm. Note: Undercarriage with extendable track against surcharge. Drive unit: 4-cylinder diesel engine 50 kw / 68 hp, water cooled with direct drive axial piston pump, oil cooler, oil supply / return line filters, sound cannon, emission standard according to EU Directive EU Stufe V / US EPA Tier 4 Basic hydraulic system: Single circuit load sensing system, proportional, directly or by remote control. Maximum pump capacity 105 l at 2400 U / min, max. System pressure: 190 bar 3 manometer, (system pressure, mud pressure, pull down) Mast Standard: Feeding slide out in track rollers, with release plate to accommodate different power swivel; Movement length: see drawing; pull up – pull down force 4000 kg; pull down pressure throttled to about 1000 kg so that it can not liftig the maschine mast side. Hand control functions "main group" Power swivel; feed; mud pump; winch; crawler track right; crawler track left, a total of 6 valves depending on the equipment Crawler track control via cable remote control, drilling operation manually via control valves. Note: Drilling operation alternative with cable remote control for against surcharge Hand control function "auxiliary function" Supports clinder up / down; crawler track with sliding; Mast erection; Mast extension; power swivel tillt; bracing clamp (casing); drill pipe Press / pul upl clamp a total of 10 valves depending on the equipment Mast-sided support: Support cylinder of 850 mm to 1400 mm telescopic to increase the stability of the rig during the drilling operation Power swivel to direct flush drilling: hydraulic switchable 3-speed gearbox with directly flow passage, torque Nm 4400/2200/1100; rotation speed 0-50 / 0-100 / 0-200 rpm; mud pressure 25 bar and tilt device to 65 ° Power swivel folding and power swivel tilting device: Manual unfold for pipe diameter 219 mm Swivel mechanism of the power swivel incl. check valve, lowering brake valve and control valves. Swing-out angle with mud goseneck 65 ° Note: Hydraulic sideshift against surcharge. Flood lights on mast head 2 pluggable headlamp mounted Incl. cable and electric Training for 2-3 members for customer’s staff at our site in Nordkichen for 2 days (travel expensens not included)Diğerlerini göster

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Almanya
