CAT CAT305.5E2

KDV hariç fiyat

Images10

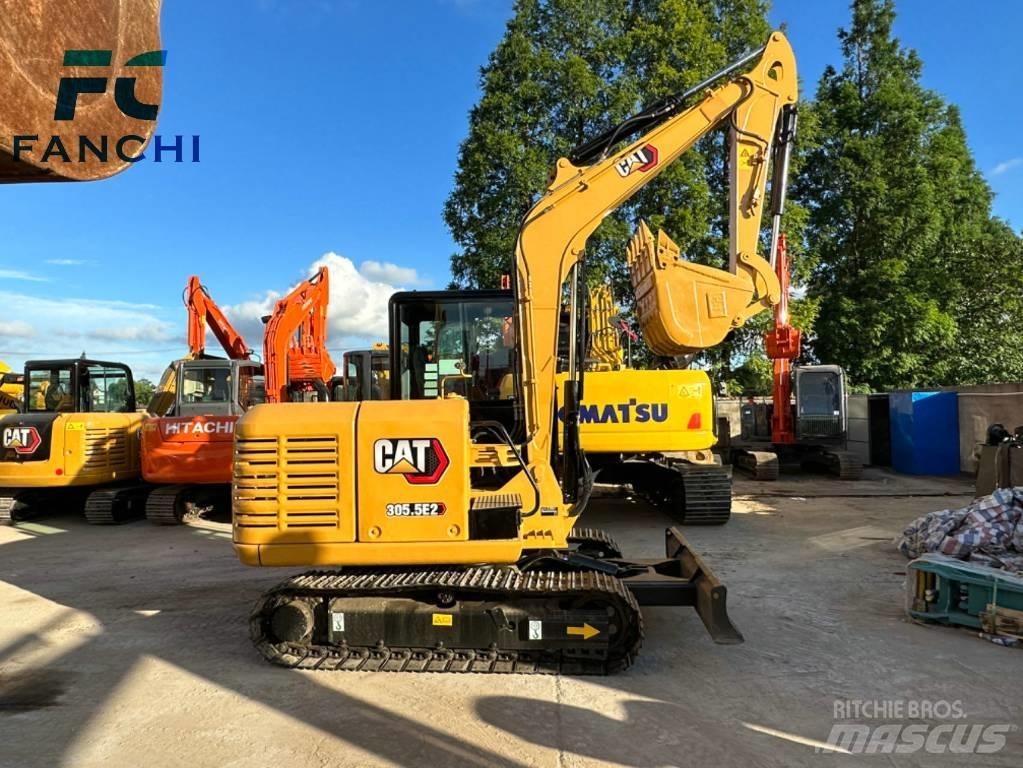

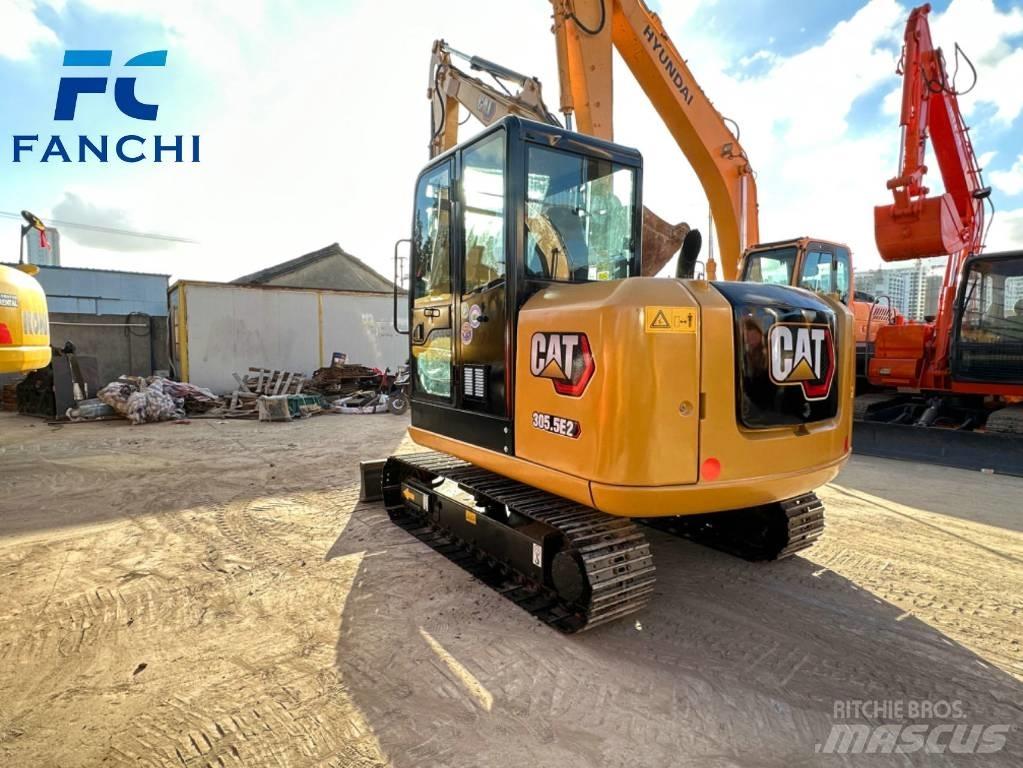

CAT CAT305.5E2 Mini ekskavatörler, 7 tona dek
CAT CAT305.5E2 Mini ekskavatörler, 7 tona dek
CAT CAT305.5E2 Mini ekskavatörler, 7 tona dek
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Mini ekskavatörler, 7 tona dek
Marka / model
CAT CAT305.5E2
Kayıt yılı
2024
Kullanım saati
450 h
Durum
Remanufactured
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
77BC2619

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Güç tipi
Dizel
Servis geçmişi
Evet
Önceki sahiplerin sayısı
1
Araç altı durumu
good
Brüt ağırlık
5.500 kilogram
Emisyon sınıfı
Stage V / Tier V
Track width
400 mm
Kepçe kapasitesi
0,22 m3
Taşıma Ölçüleri (EnxBoyxYükseklik)
576519502.54 m
Orijinal renk
YELLOW
Kepçe / çubuk uzunluğu
960 mm
Motor
Cat C2.4 DI
Motor gücü
34,1 kW (46,4 hp)
Motor üreticisi
JAPAN
Garanti
good
Production country
Japonya
Delivery terms
FOB, CIF, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Ataşmanlar
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Aksesuarlar
İnce tel kutusu
Klima
Ek hidrolikler
AdBlue
Diğerlerini göster
Diğer bilgiler
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Diğerlerini göster

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Çin
