Cummins 4BT3.9-C100
KDV hariç fiyat
3
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins 4BT3.9-C100
Kayıt yılı
2020
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
43CCC7E0
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
4BT3.9-C100
Son ekspertiz
yes
Motor gücü
75 kW (102 hp)
Part ID
4BT3.9-C100
Servis geçmişi
Evet
Motor üreticisi
Cummins
Üretici seri no.
4BT3.9-C100
Taşıma Ağırlığı
380 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
1000 x 600 x 1200 mm
RPM
2400
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FOB, CFR, CIF, EXW
Diğer bilgiler

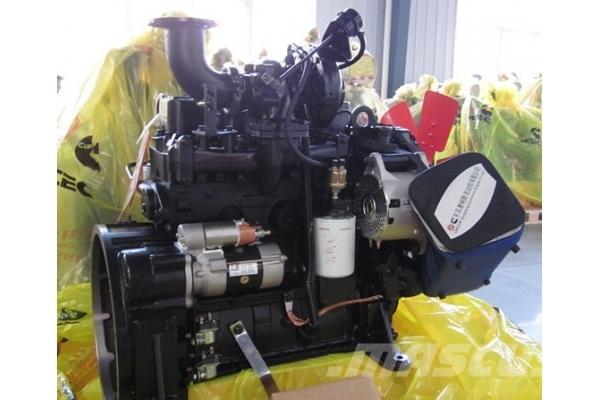

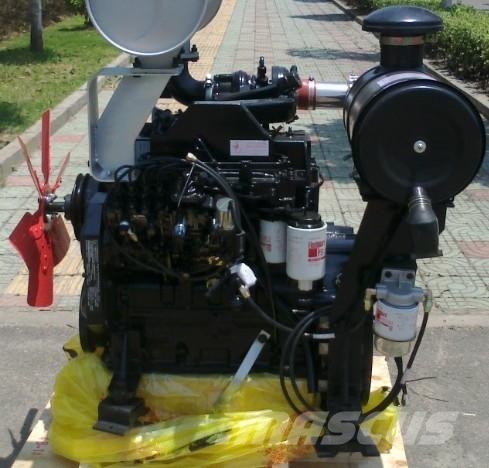

Cummins 4BT3.9-C100 Industrial Diesel Engine
General Information
Engine Model 4BT3.9-C100
Engine Type 4 Cylinders in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D382043CX02
Net Weight (with flywleel & alternator) 338 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 7.9 L
Performance Data
Rated Power/Speed 75 kW/102HP 2400rpm
Max.Torque/Speed 330 N.m 1500 rpm
Fuel Consumption Rated Power 250g/Kw.h
Idel Speed 750rpm
Max. Continuous Running Altitude 2000 m
