Cummins 6CTA8.3-C230
KDV hariç fiyat
5
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins 6CTA8.3-C230
Kayıt yılı
2018
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
7BE9E2BC
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
6CTA8.3-C230
Son ekspertiz
yes
Motor gücü
172 kW (234 hp)
Part ID
6CTA8.3-C230
Servis geçmişi
Evet
Üretici seri no.
6CTA8.3-C230
Taşıma Ağırlığı
700 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
1600 x 900 x 1400 mm
RPM
2200
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Diğer bilgiler

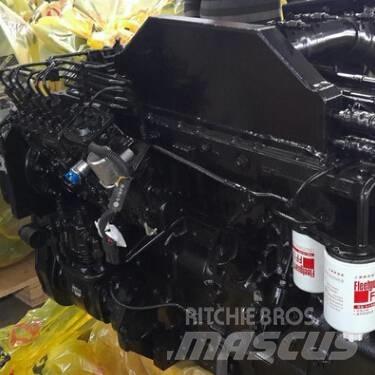

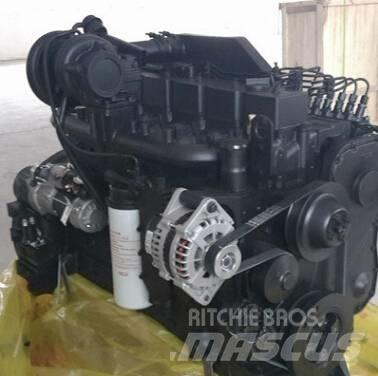

Cummins 6CTA8.3-C230 Industrial Diesel Engine
General Information
Engine Model 6CTA8.3-C230
Engine Type 6 Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
Engine Configuration Number D413061CX03
Net Weight (with flywleel & alternator) 637 Kg
Overall Diemension(L*W*H) 1560mm*900mm*1400mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu PW2000/RSV
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.8 L
Performance Data
Rated Power/Speed 172 kW/230HP @ 2200rpm
Max.Torque/Speed 1003N.m @ 1500 rpm
Fuel Consumption @ Rated Power 224g/Kw.h
Idel Speed 900 rpm
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Çin
