Cummins 6CTA8.3-G2
KDV hariç fiyat
3
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins 6CTA8.3-G2
Kayıt yılı
2018
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
645A30C1
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
6CTA8.3-G2
Son ekspertiz
yes
Motor gücü
163 kW (222 hp)
Part ID
6CTA8.3-G2
Servis geçmişi
Evet
Üretici seri no.
6CTA8.3-G2
Taşıma Ağırlığı
780 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
1550 x 900 x 1400 mm
RPM
1500
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Diğer bilgiler

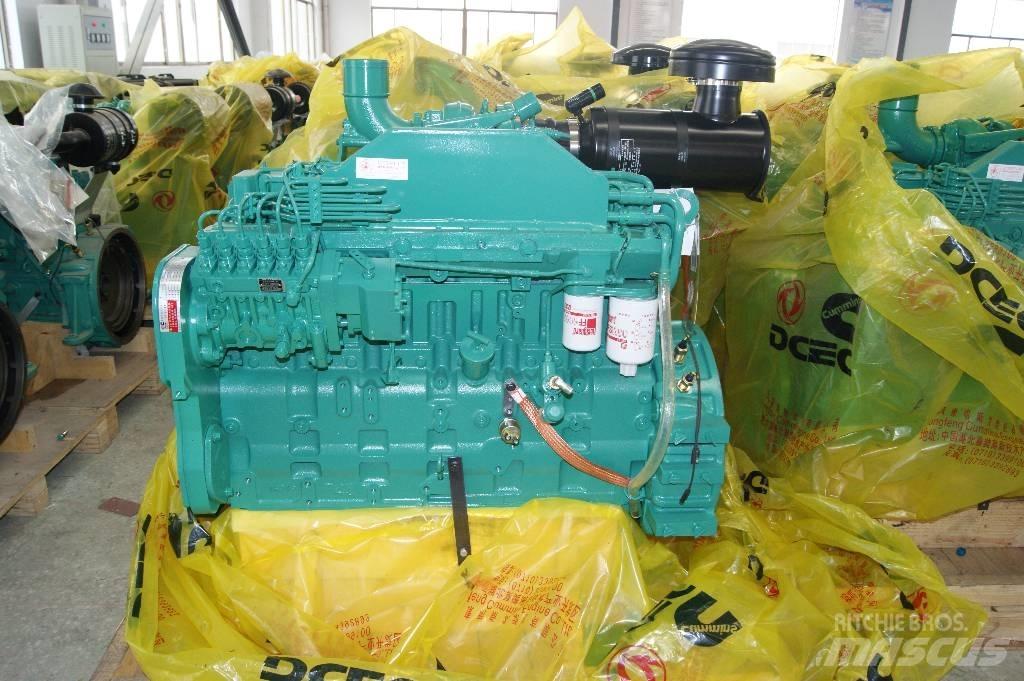

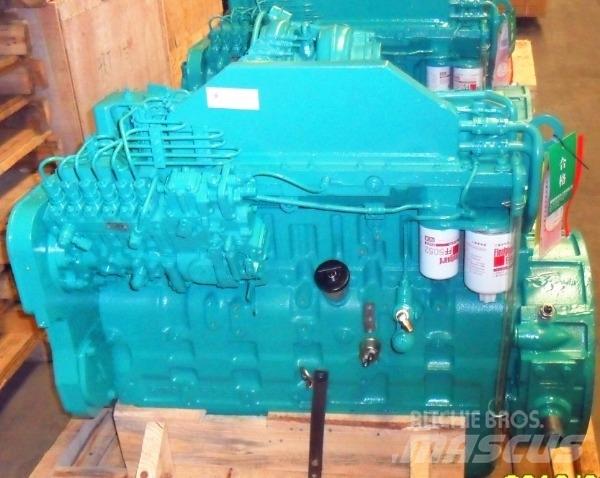

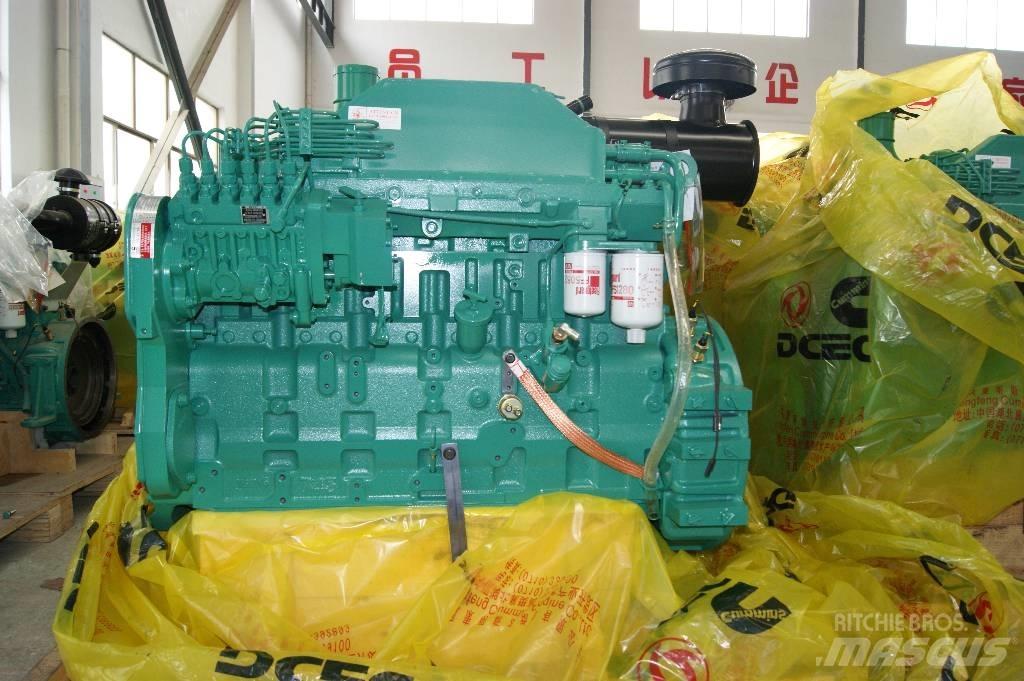

Cummins 6CTA8.3-G2 G-Drive Diesel Engine
General Information
Engine Model 6CTA8.3-G2
Engine Type 6Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
CPL Number 8414
Net Weight (with flywleel & alternator) 702 Kg
Overall Diemension(L*W*H) 1360mm*780mm*988mm
Technical Specification
Fuel System BYC PB Pump/GAC Electronic Governor
Aspiration Turbocharged & Intercooled
Governing Rate 1％ － 5％
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 12.3 L
Performance Data
Rated Power/Speed 163 kW/219HP @ 2000rpm
Torque @ Rated Power 1040 N.m @ 1500 rpm
Standby Power/Speed 180 kW/241HP @ 2000rpm
Torque @ Standby Power 1145 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 210g/Kw.h
Fuel Consumption @ Standby Power 212g/Kw.h
Idel Speed 750 – 950 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Çin
