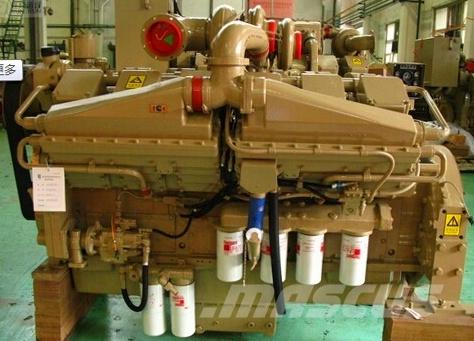

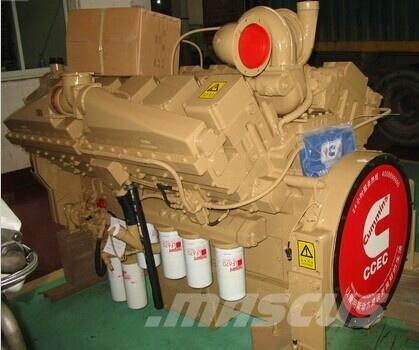

Cummins KTA38-G5
KDV hariç fiyat
3
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins KTA38-G5
Kayıt yılı
2018
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
C68D0670
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
KTA38-G2
Son ekspertiz
yes
Motor gücü
880 kW (1.196 hp)
Part ID
KTA38-G2
Servis geçmişi
Evet
Üretici seri no.
KTA38-G2
Taşıma Ağırlığı
3.800 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
2600 x 1600 x 2000 mm
RPM
1500
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FOB, CFR, CIF, EXW
Diğer bilgiler
Cummins KTA38-G5 Generator Engine
General Information
Engine Model KTA38-G5
Engine Type 12 Cylinders, V-type
Displacement 37.8 L
Bore*Stroke(mm) 159 * 159
CPL Number 1543
Net Weight (with flywleel & alternator) 3723 Kg
Overall Diemension(L*W*H) 2341mm*1360mm*1653mm
Technical Specification
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 124L
Engine Oil Volume 135 L
Performance Data
Rated Power/Speed 880kW/1180HP @ 1500rpm
Standby Power/Speed 970kW/1300HP @ 1500rpm
Idle Speed At Rated Power 725-775r/min
Fuel Consumption @ Continous Power 205L/hr
Fuel Consumption @ Rated Power 209L/hr
Fuel Consumption @ Standby Power 228L/hr
