Cummins KTAA19-G5
KDV hariç fiyat
4
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins KTAA19-G5
Kayıt yılı
2018
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
AED7082A
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
KTAA19-G5
Son ekspertiz
yes
Motor gücü
470 kW (639 hp)
Part ID
KTAA19-G5
Servis geçmişi
Evet
Üretici seri no.
KTAA19-G5
Taşıma Ağırlığı
1.950 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
1800 x 1100 x 1900 mm
RPM
1500
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FOB, CFR, CIF, EXW
Diğer bilgiler

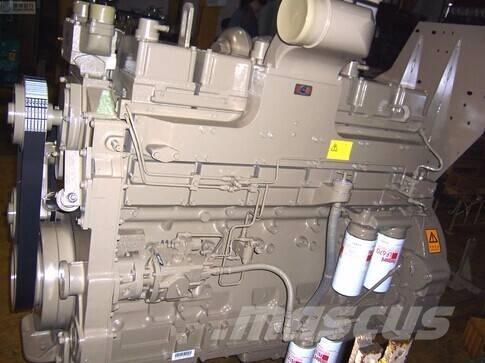

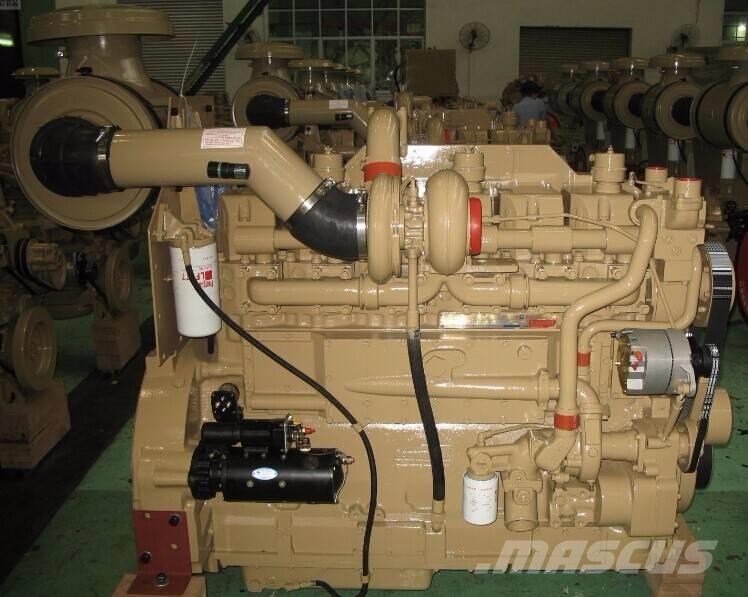

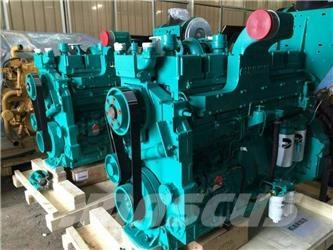

General Information of Cummins KTAA19-G5 Generator Engine
Engine Model KTAA19-G5
Engine Type 6 Cylinders, in Line
Displacement 18.9 L
Bore*Stroke(mm) 159 * 159
CPL Number 1455
Net Weight (with flywleel & alternator) 1855 KG
Overall Diemension(L*W*H) 1324mm*835mm*1183mm
Technical Specification of Cummins KTAA19-G5 Generator Engine
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 30L
Engine Oil Volume 50 L
Performance Data of Cummins KTAA19-G5 Generator Engine
Rated Power/Speed 470kW/630HP @ 1500rpm
Standby Power/Speed 555 kW/744HP @ 1500rpm
Max Engine Oil Consumption 0.02 L/h
Fuel Consumption @ Continous Power 101L/hr
Fuel Consumption @ Rated Power 107L/hr
Fuel Consumption @ Standby Power 121L/hr
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Çin
