Cummins MTAA11-G3
KDV hariç fiyat
2
Favori
Share
Aramayı kaydetYazdır
BILGI
Ürün grubu
Motorlar
Marka / model
Cummins MTAA11-G3
Kayıt yılı
2018
Durum
New/unused
Makinenin yeri
Jining, Shandong, China
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
83F25EC1
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
MTAA11-G3
Son ekspertiz
yes
Motor gücü
282 kW (383 hp)
Part ID
MTAA11-G3
Servis geçmişi
Evet
Üretici seri no.
MTAA11-G3
Taşıma Ağırlığı
1.100 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
1600 x 1000 x 1800 mm
RPM
1500
Emisyon sınıfı
Stage II / Tier II
Garanti
ISO9001
Production country
Çin
Delivery terms
FOB, CFR, CIF, EXW
Diğer bilgiler

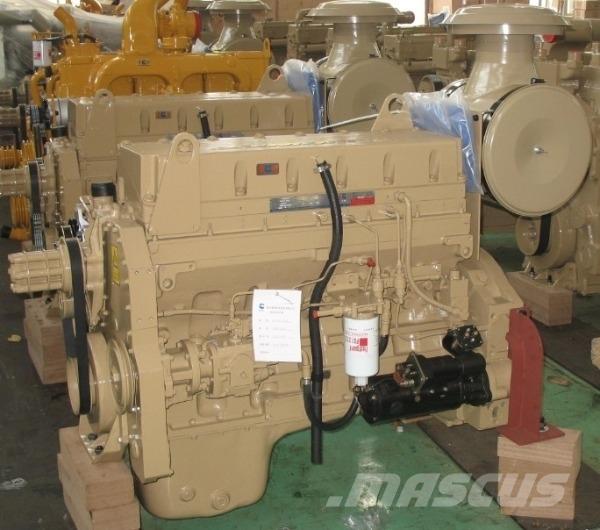

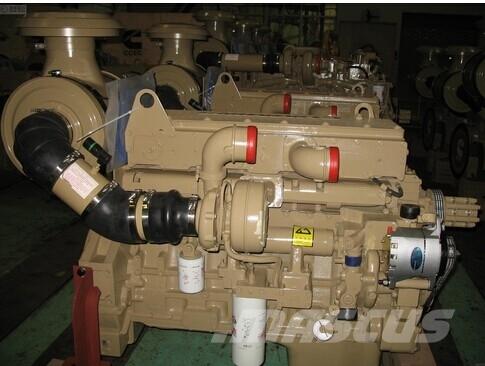

Cummins MTAA11-G3 Generator Engine
General Information
Engine Model MTAA11-G3
Engine Type 6 Cylinders, in Line
Displacement 10.8 L
Bore*Stroke(mm) 125 * 147
CPL Number CQ223
Net Weight (with flywleel & alternator) 973KG
Overall Diemension(L*W*H) 1306mm*914mm*1280mm
Technical Specification
Fuel System PT Direct Injection Pump
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Compression Ratio 15.0：1
Engine Cooling Fluid Volume 9.5 L
Performance Data
Rated Power/Speed 282 kW/384HP @ 1500 rpm
Maximum Friction Power@ Rated Power 22KW @ 1500 rpm
Standby Power/Speed 310kW/422HP @ 1500 rpm
Maximum Friction Power@ Standby Power 22KW @ 1500 rpm
Fuel Consumption @ Rated Power 210g/kW.h
Fuel Consumption @ Standby Power 212g/kW.h
Idle Speed 675–750 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Çin
