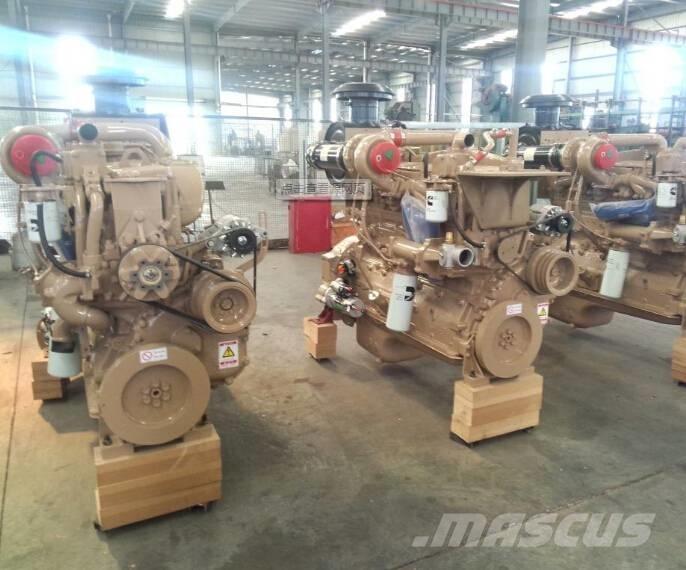

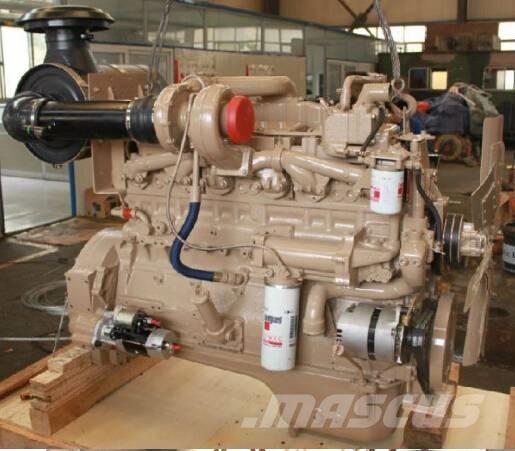

Cummins NT855-M340

Cummins NT855-M340 Marine Propulsion Diesel Engine General Information of Cummins NT855-M340 Marine Propulsion Diesel Engine Engine Model NT855-M340 Engine Type 6 Cylinders in Line Displacement 14 L Bore*Stroke(mm) 140 * 152 CPL Number 0731 Net Weight (with flywleel & alternator) 1258 Kg Overall Diemension(L*W*H) 1453mm*947mm*1296mm Technical Specification of Cummins NT855-M340 Marine Propulsion Diesel Engine Marine Certification CCS Aspiration Turbocharged Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Standard Thermostat Operating Range (Open) 82 °C Standard Thermostat Operating Range (Full Open) 94 °C Performance Data of Cummins NT855-M340 Marine Propulsion Diesel Engine Rated Power/Speed 254 kW/340HP @ 1800rpm Fuel Consumption @ Rated Power 39 l/hr Compression Ratio 14.5:1 Rating Type Continuous Idel Speed 575±675 rpm
