Wamet WPS80

KDV hariç fiyat

Images11
Wamet WPS80 Diğer sondaj ekipmanları
Wamet WPS80 Diğer sondaj ekipmanları
Wamet WPS80 Diğer sondaj ekipmanları
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Diğer sondaj ekipmanları
Marka / model
Wamet WPS80
Kayıt yılı
2005
Ülke
Polonya
Mascus ID
B25708B2

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Production country
Polonya
Delivery terms
EXW
Diğer bilgiler

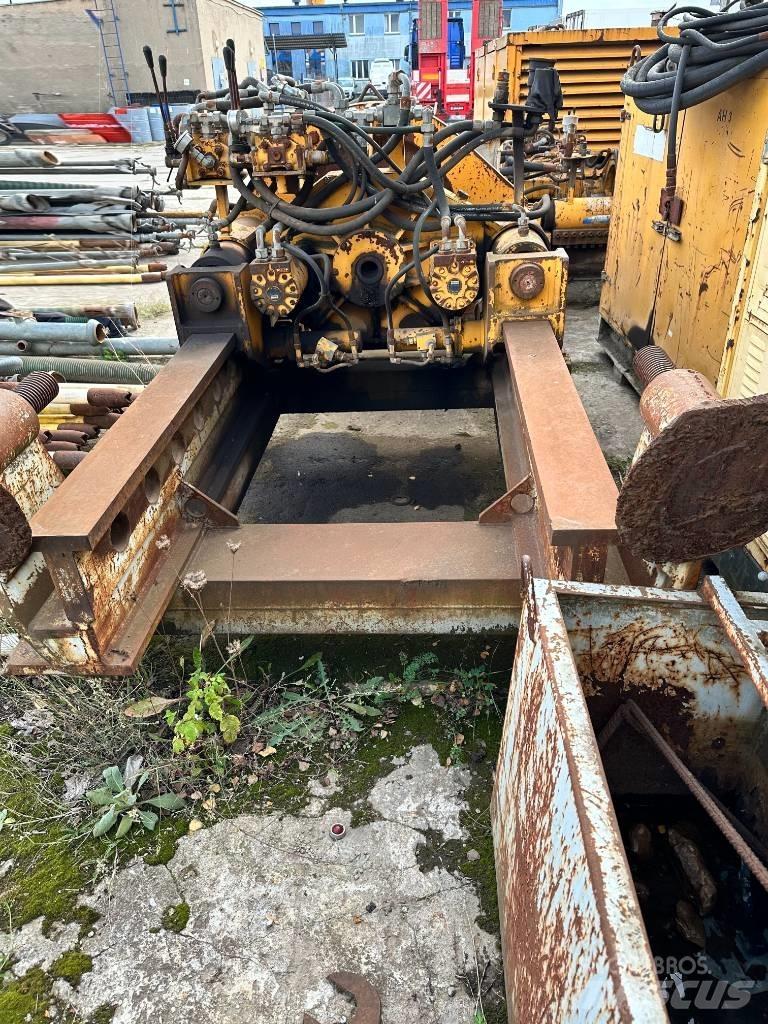

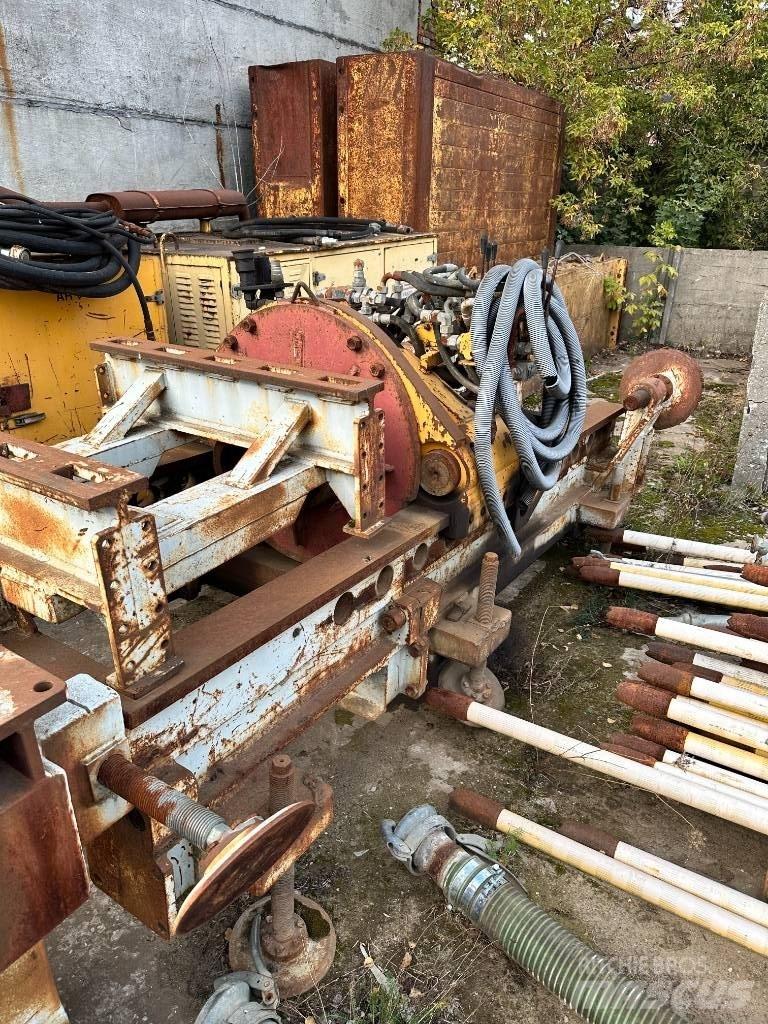

I will sell a WPS-80 auger drilling rig with a hydraulic unit and additional equipment. Picking: 1. WPS-80 drilling rig 2. AH-120 hydraulic unit 3. Additional frame 1 m, 2 pcs, allows drilling with pipe modules L = 1 m, 2 m, 3 m 4. Hydraulic supply hoses, 1 set. Remote: 5. Pilot drilling poles, 50 m 6. Pilot head, 1 pc 7. Optical navigation (theodolite with adjustable base, camera, monitor + LED target) 8. Scrubber pump Tools: 9. Auger (DN200) 230mm x 1m, 50m 10, Widia head for 273mm pipe, 1 pc 11. Auger (DN250) 280mm x 1m, 43m 12. Widia head for 355mm pipe, 1 pc 13. Auger (DN300) 360mm x 1m, 55m 14. Widia head for 406mm pipe, 1 pc other small elements such as push rings. The set does not include directional steel pipes. They are sold separately upon request. Drilling rig WPS-80 (Version with hydraulic locks) • Torque 1600daNm/20MPa • Two geared rotation motors -Parker • Pushing force 1200kN/28MPa • Stroke of main cylinders ~350mm • Weight: 2500kg on the basic track • Length: 2650mm • Width: ~1600mm 90kW hydraulic unit AH-120 • Two independent high pressure pumps • Hydraulic oil cooler. • Engine SW400/Andoria/Leyland, 6 cyl. Additional equipment • • Power cords 12m 1 set. • • 114 spindle-rod adapter • • Spindle-bore connector S65, • • Push rings Additional track 1m 2pcs (enables work with 1m, 2m, 3m modules) • pipe support included The drilling rig was used occasionally. She's functional. In good condition. Equipment available for viewing in Zabrze 41-807 Contact: WhatsApp, e-mail...Diğerlerini göster

NODIGMARKET24 Damian Sobczak

Handlowa 6 41-807 Zabrze Śląskie Polonya
