CAT 320 B

KDV hariç fiyat

Images18

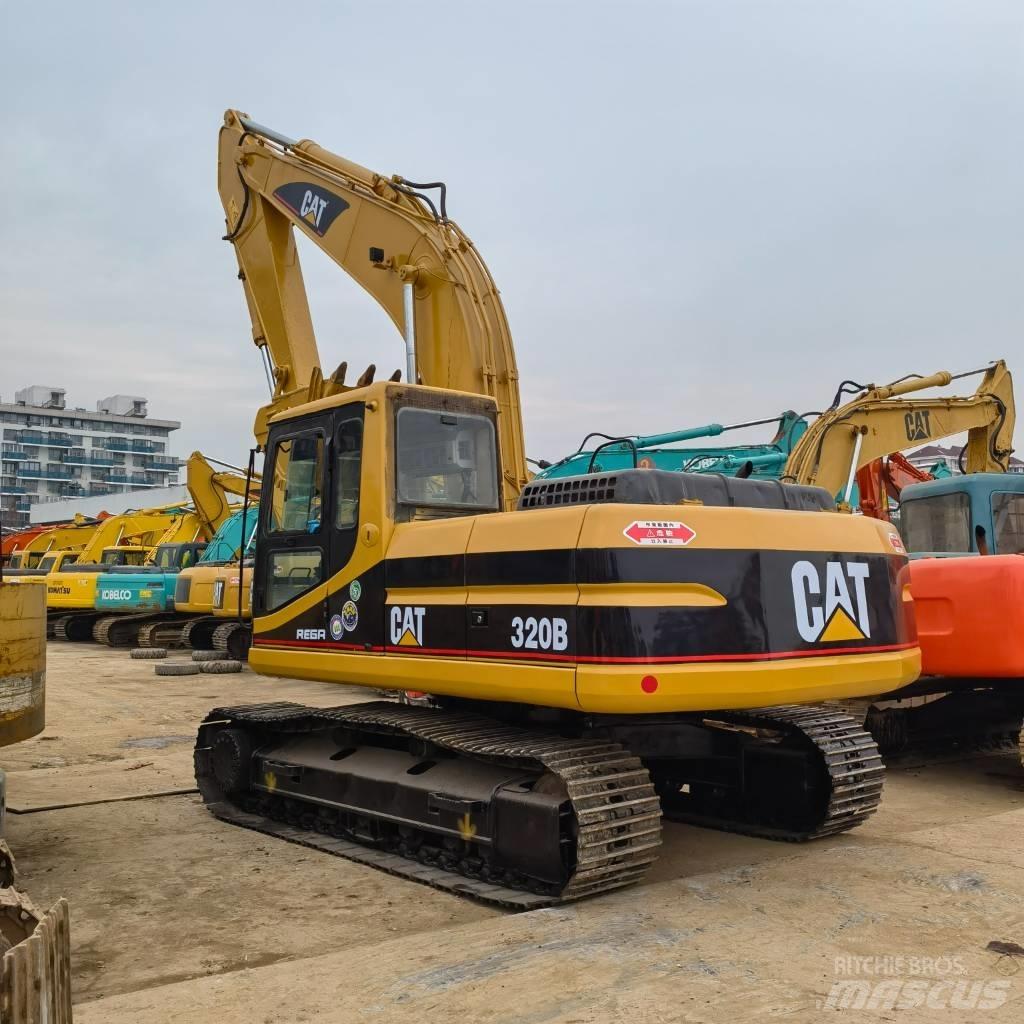

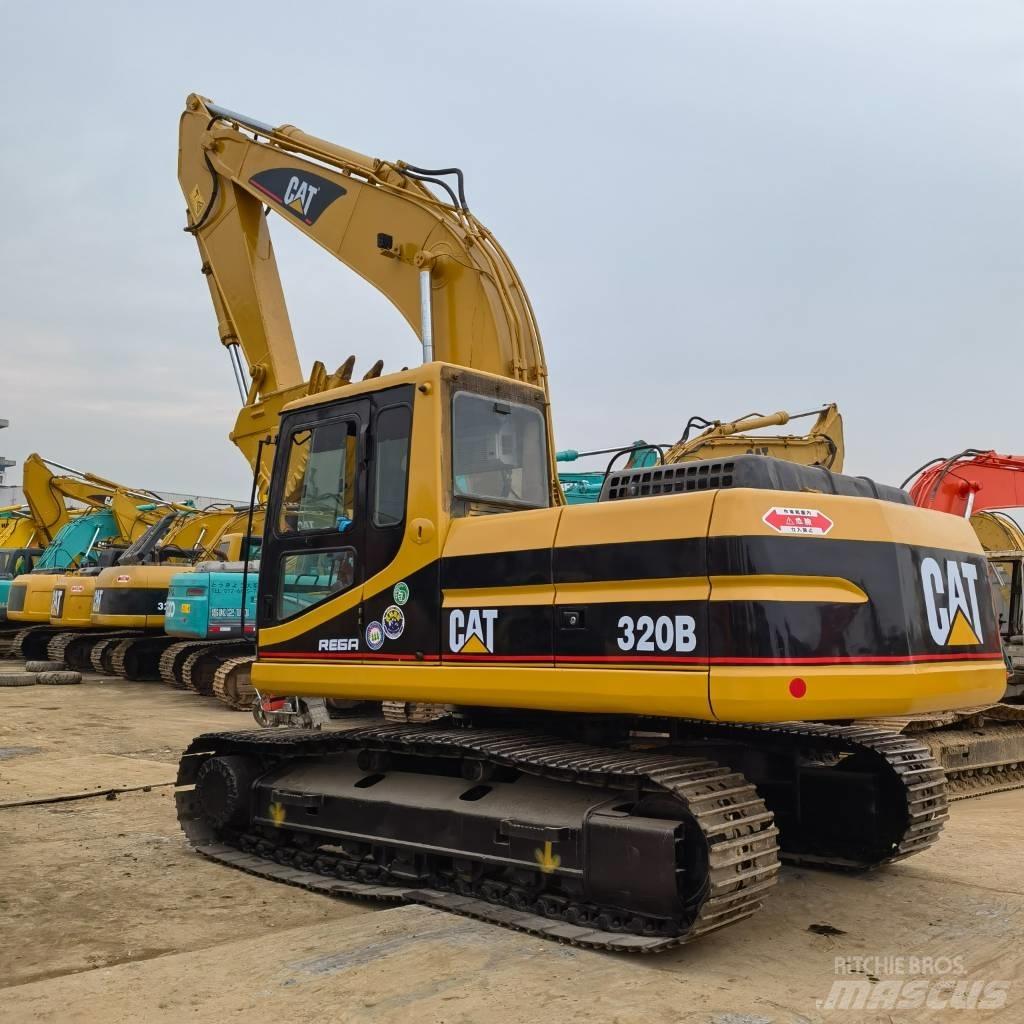

CAT 320 B Paletli ekskavatörler
CAT 320 B Paletli ekskavatörler
CAT 320 B Paletli ekskavatörler
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Paletli ekskavatörler
Marka / model
CAT 320 B
Kayıt yılı
2022
Kullanım saati
482 h
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
B480BF47

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Önceki sahiplerin sayısı
1
Araç altı durumu
good
Brüt ağırlık
20.000 kilogram
Motor gücü
168 kW (228 hp)
Motor üreticisi
JAPAN
Emisyon sınıfı
Stage V / Tier IV final
Kepçe kapasitesi
1,65 m3

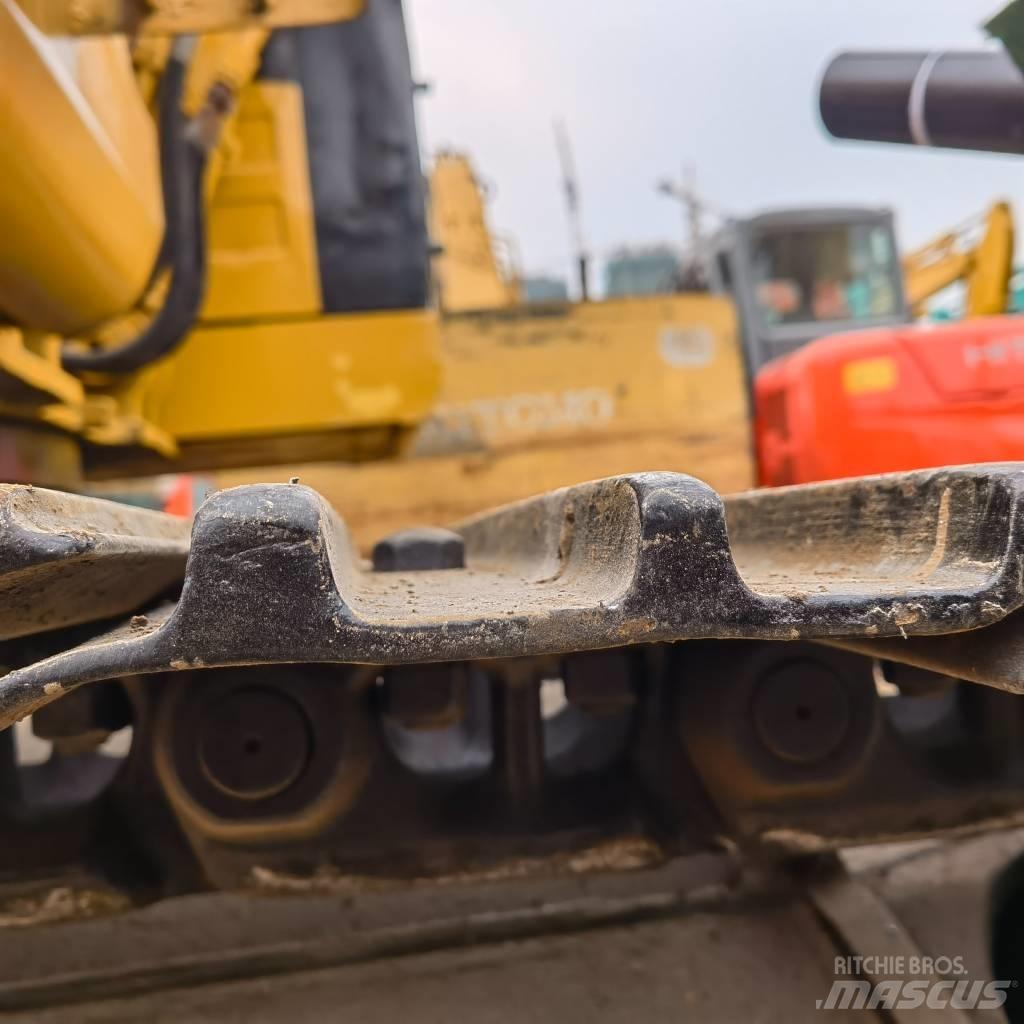

Track width
750 mm
Maks. Hız
4 km/h
Taşıma Ölçüleri (EnxBoyxYükseklik)
944028002.94 m
Orijinal renk
YELLOW
Kepçe / çubuk uzunluğu
1.800 mm
Garanti
good
Production country
Japonya
Delivery terms
FOB, EXW
Certificates
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Ataşmanlar
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Aksesuarlar
Otomatik / hidrolik hızlı bağlantı
Kaz boynu bom
Hidrolik ayarlanabilen bom
hat koparma valfli bom -> güvenli hat koparma valfi – bom/yükseltici
Diğerlerini göster
Diğer bilgiler
The Caterpillar Cat320B excavator has various derivative models. The following are the common parameters of its basic model: ### General Specifications - **Operating weight of the whole machine**: 19,400 kg - **Standard bucket capacity**: 0.92 m³ - **Boom length**: 5,680 mm - **Stick length**: 2,900 mm - **Place of origin**: Japan - **Total transport length**: 9,440 mm - **Total transport width**: 2,800 mm - **Total transport height**: 2,940 mm - **Overall height of the cab**: 2,940 mm - **Minimum ground clearance**: 475 mm - **Tail swing radius**: 2,750 mm - **Track gauge**: 2,200 mm - **Track shoe width**: 600 mm - **Total track width**: 2,800 mm - **Track ground contact length**: 3,265 mm ### Power System - **Engine model**: Caterpillar CAT 3066T - **Rated power**: 99.9 kW / 1,800 rpm - **Bore × Stroke**: 102 mm × 130 mm - **Displacement**: 6.4 L ### Performance Parameters - **Slewing speed**: 10.7 rpm - **Travel speed**: 3.4 / 5.5 km/h - **Maximum digging depth**: 6,640 mm - **Maximum digging height**: 9,470 mm - **Maximum unloading height**: 6,570 mm - **Maximum vertical digging depth**: 6,040 mm - **Maximum digging radius at ground level**: 9,780 mm ### Hydraulic System - **Maximum flow rate of the main pump**: 185 L/min - **Travel hydraulic circuit pressure**: 34.3 MPa - **Slewing hydraulic circuit pressure**: 23 MPa - **Working hydraulic circuit pressure**: 34.3 MPa - **Pilot hydraulic circuit pressure**: 4.12 MPa - **Bucket cylinder**: 1 - 120 × 1,030 mm (Number × Bore × Stroke) - **Stick cylinder**: 1 - 140 × 1,430 mm (Number × Bore × Stroke) - **Boom cylinder**: 2 - 120 × 1,260 mm (Number × Bore × Stroke) ### Fluid Capacities - **Fuel tank capacity**: 340 L - **Hydraulic oil tank capacity**: 130 L - **Engine oil replacement volume**: 20.5 L - **Coolant capacity**: 25 L - **Hydraulic system fluid capacity**: 220 LDiğerlerini göster

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Çin
