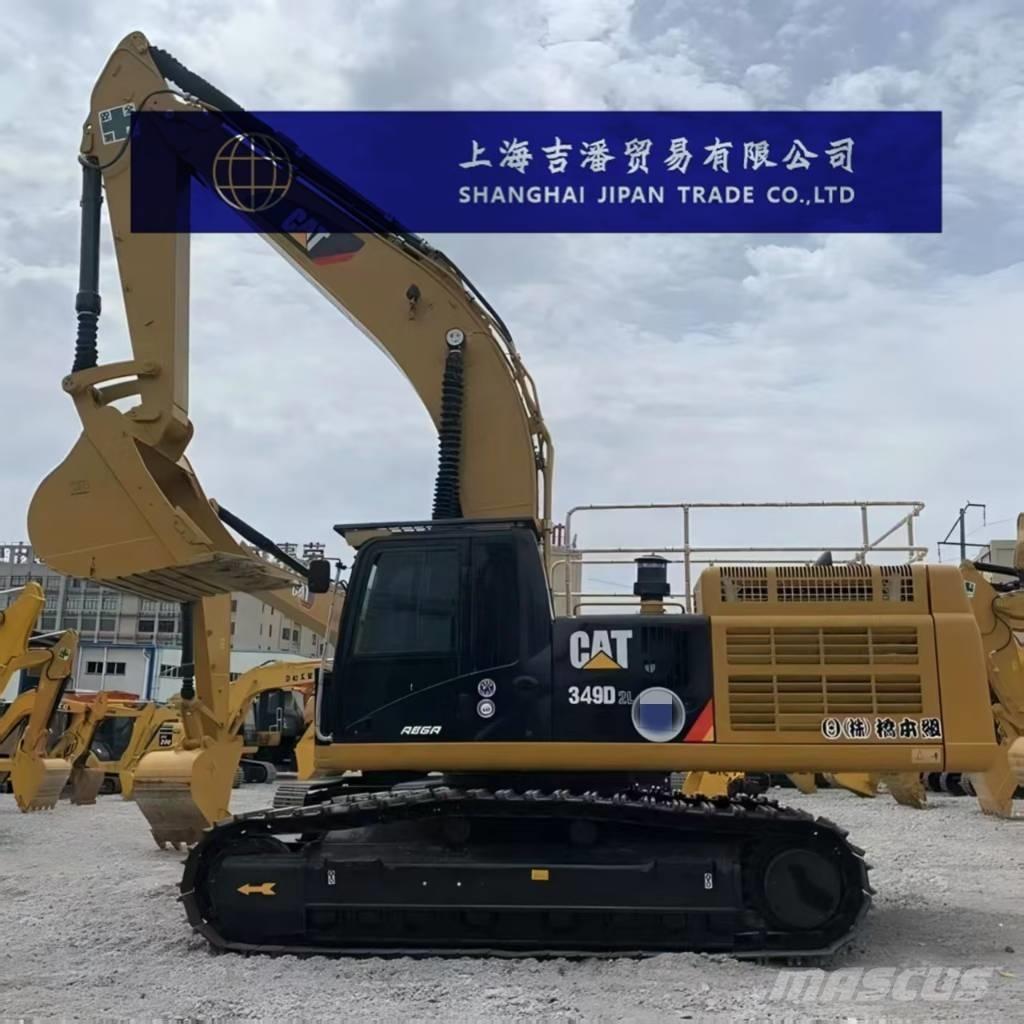

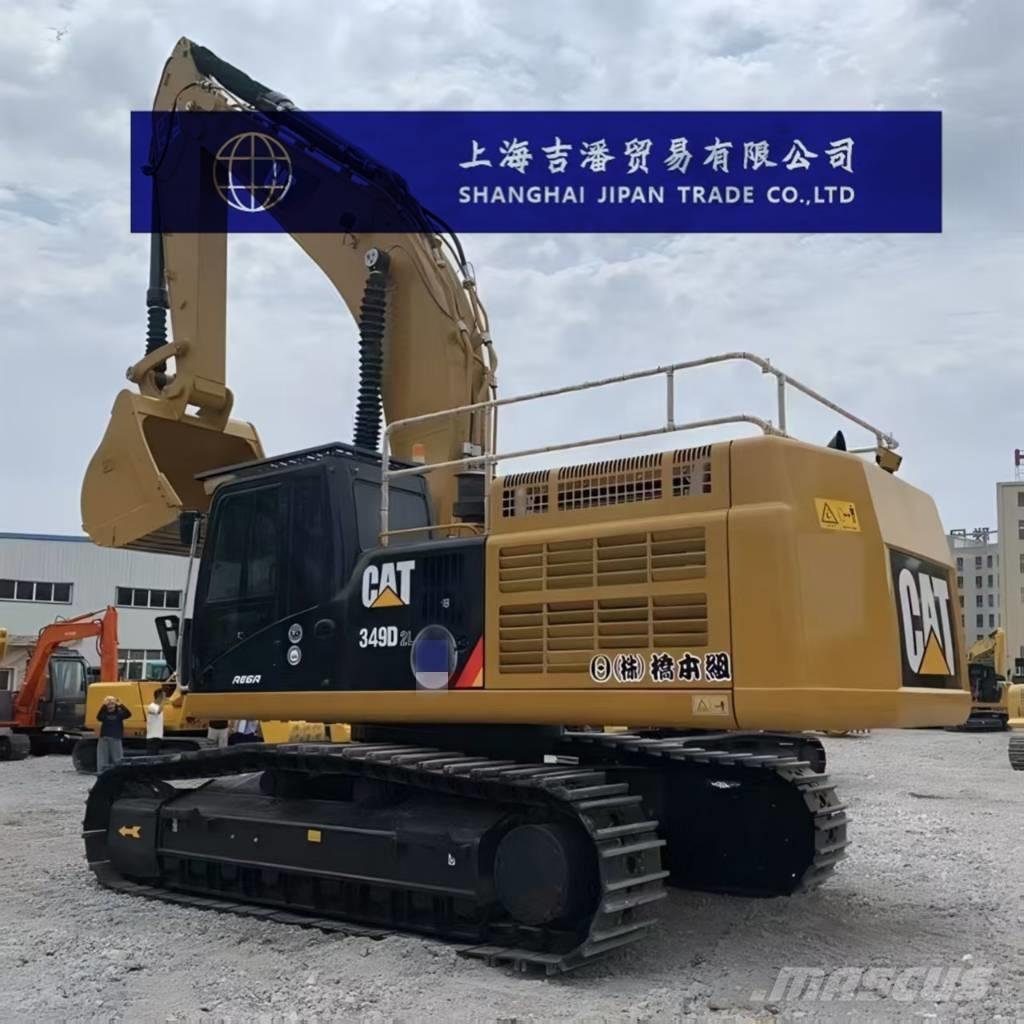

CAT 349 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)49 The overall working weight of the machine (kg) is 46,285 Bucket capacity (m³) : 1.8-3.11 Boom length (mm) : 7400/6900/6550 The length of the boom (mm) is 4300/3900/3350 Origin: The United States Performance Rotational speed (rpm)8.7 Walking speed (km/h)4.5 Power system Engine model: Caterpillar Cat C13 ACERT Rated power (kw/rpm)283 Displacement (L)12.5 Cylinder diameter × stroke (mm) : 130×157 The cooling method is water cooling Hydraulic system The maximum flow rate of the main pump (l/min) is 734 Pilot pump flow rate (L/min)43 Pilot oil circuit (MPa)4.11 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)31.4 The main overflow set pressure (Mpa) is 35 Boom cylinders - number × cylinder diameter × stroke (mm)1-160×1575 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-190×1778 Bucket cylinder - number × cylinder diameter × stroke (mm)1-160×1356 Oil capacity Fuel tank (L)705 Hydraulic oil tank (L)243 Hydraulic system (L)570 Engine oil change volume (L)42 Coolant (L)35.5 Main body size The total transportation length (mm) is 12,450 The total transportation width (mm) is 3640 The total transportation height (mm) is 3680 The total height of the cab (mm) is 3210 Total track length (mm)5070 Track plate width (mm) : 750 The total width of the tracks (mm) is 3640 Track gauge (mm) : 2740 Minimum ground clearance (mm)510 The ground clearance of the counterweight (mm) is 1320 Rear end turning radius (mm)3770 Scope of work The maximum excavation radius (mm) of the shutdown face is 12,940 Maximum excavation depth (mm) : 8920 Maximum unloading height (mm) : 7870 The maximum vertical excavation depth (mm) is 5860 Maximum effective excavation depth (mm) : 8790
