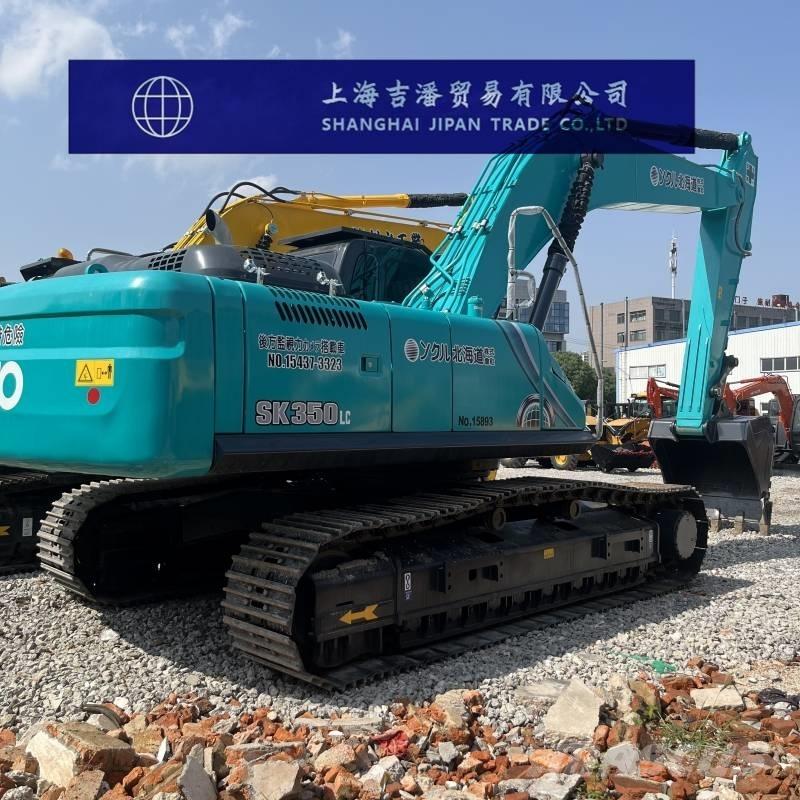

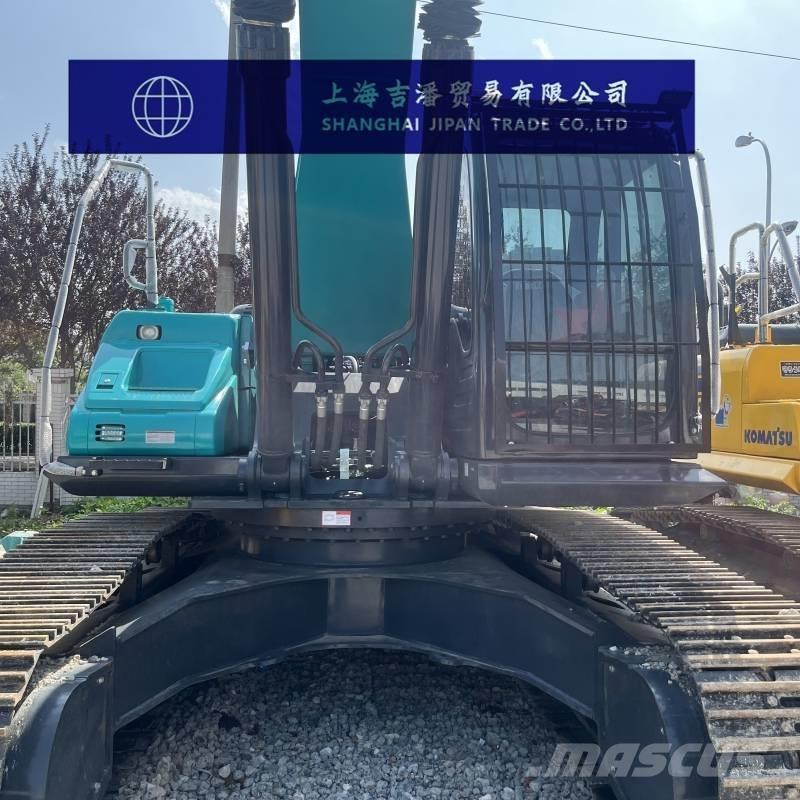

Kobelco SK 350
KDV hariç fiyat
Yazdır
BILGI
Ürün grubu
Paletli ekskavatörler
Marka / model
Kobelco SK 350
Kayıt yılı
2023
Kullanım saati
700 h
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
43472A6B
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
1
Güç tipi
Dizel
Üretici seri no.
1
Önceki sahiplerin sayısı
1
Son ekspertiz
2025-07-25
Araç altı durumu
Good Condition
Motor
Original
Brüt ağırlık
34.700 kilogram
Motor gücü
197 kW (268 hp)
Motor üreticisi
Original
Kayıt no.
1
Emisyon sınıfı
Stage V / Tier V
Kepçe kapasitesi
1,60 m3
Track width
600 mm
Yardımcı hidroliklerin çıkışı
294 l/dak
Maks. Hız
5,60 km/h
Taşıma Ölçüleri (EnxBoyxYükseklik)
11200 x 3400 x 3420 mm
Orijinal renk
Original
Kepçe / çubuk uzunluğu
3.300 mm
Garanti
1 Year
Production country
Japonya
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Ataşmanlar
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Aksesuarlar
hat koparma valfli bom -> güvenli hat koparma valfi – bom/yükseltici
hat koparma valfli kepçe -> güvenli hat koparma valfi - kepçe/çubuk
İnce tel kutusu
Klima
Motor ön filtresi
Izgaralı kepçe
Döner tepe lambası
Ekstra ekipman
Kumanda kolu kontrolü
Standart kazma kepçesi
Kablolu kepçe
Hendek/tesviye kepçesi
V şekilli hendek kepçe
Diğer bilgiler
Overall machine specification
The overall working weight of the machine is 34,700 kg
Bucket capacity: 1.6 cubic meters
Boom length: 3300mm
Performance parameters
Rotational speed: 10rpm
Walking speed: 5.6/3.3Km/h
Climbing ability: 70% (35°)
Grounding specific pressure: 50.5Kpa
Bucket digging force: 322kN
Bucket shaft digging force: 165kN
Power system
Engine model: Hino JO8E
Rated power: 196.9/2100 kW /rpm
Displacement: 7.7L
Number of cylinders: 6
Cylinder diameter × stroke: 112*130mm
Note: Direct injection, turbocharging, built-in intercooling
Hydraulic system
Main pump types: Double variable displacement axial piston pump, pilot gear pump
The maximum flow rate of the main pump is 2*294L/min
The type of walking hydraulic motor: two sets of two-speed variable displacement plunger motors
Working hydraulic circuit: 34.3Mpa
Walking hydraulic circuit: 34.3Mpa
Rotary hydraulic circuit: 29Mpa
Control hydraulic circuit: 5Mpa
Boom cylinders: Number × cylinder diameter × stroke: 2140-1550mm
Bucket rod cylinder: number × cylinder diameter × stroke is 170*1788mm
Bucket cylinder: Number × cylinder diameter × stroke is 150*1193mm
Oil capacity
Fuel tank: 580L
Hydraulic oil tank: 280L
Hydraulic system: 353L
Engine oil change volume: 28.5L
Coolant: 31.1L
Main body size
Total transportation length: 11200mm
Total transportation width: 3400mm
Total transportation height: 3420mm
The total height of the cab is 3160mm
Counterweight ground clearance: 1190mm
Track grounding length: 4050mm
Total track length: 4980mm
Track plate width: 600/800mm
Total width of the track: 3200mm
Track gauge: 2600mm
Minimum ground clearance: 500mm
Minimum turning radius of the front working device: 4370mm
Rear end turning radius: 3500mm
Scope of work
Maximum excavation radius: 11,260 mm
Maximum excavation radius of the shutdown face: 11060mm
Maximum excavation depth: 7,560mm
Maximum excavation height: 10,580mm
Maximum unloading height: 7370mm
Maximum vertical excavation depth: 6610mm
Maximum excavation depth (2.5 meters level) : 7400mm
