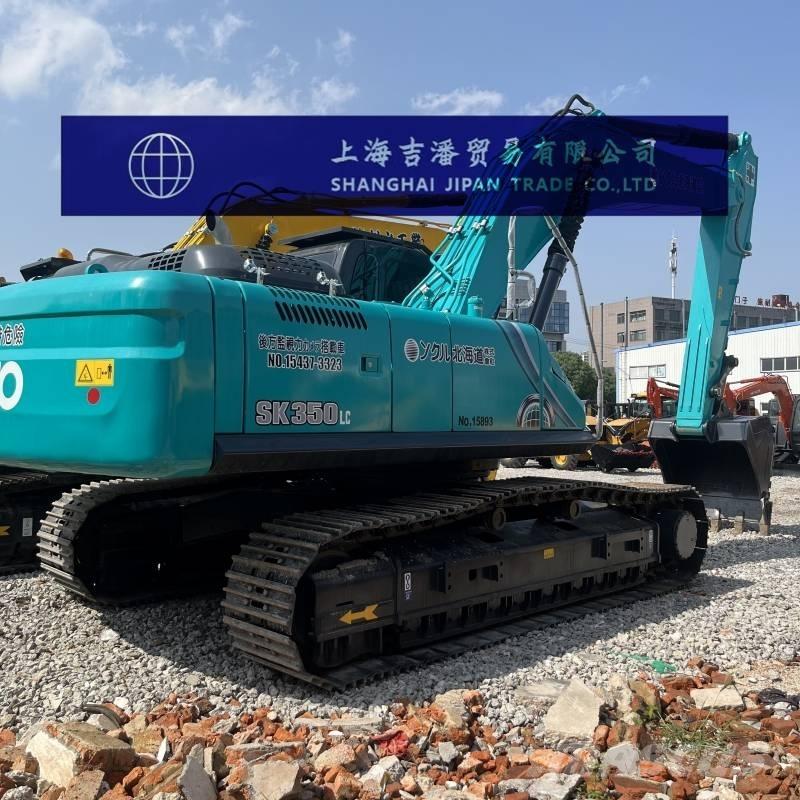

Kobelco SK 350

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Overall machine specification The overall working weight of the machine is 34,700 kg Bucket capacity:1.6 cubic meters Boom length: 3300mm Performance parameters Rotational speed:10rpm Walking speed:5.6/3.3Km/h Climbing ability:70% or 35 degrees Grounding specific pressure:50.5Kpa Bucket digging force:322kN Bucket shaft digging force:165kN Power system Engine model:Hino JO8E Rated power:196.9/2100 kW /rpm Displacement:7.7L Number of cylinders:6 Cylinder diameter × stroke:112*130mm Note: Direct injection, turbocharging, built-in intercooling Hydraulic system Main pump types: Double variable displacement axial piston pump, pilot gear pump The maximum flow rate of the main pump is 2*294L/min The type of walking hydraulic motor:two sets of two-speed variable displacement plunger motors Working hydraulic circuit:34.3Mpa Walking hydraulic circuit:34.3Mpa Rotary hydraulic circuit:29Mpa Control hydraulic circuit:5Mpa Boom cylinders: Number × cylinder diameter × stroke:2140-1550mm Bucket rod cylinder: number × cylinder diameter × stroke is 170*1788mm Bucket cylinder: Number × cylinder diameter × stroke is 150*1193mm Oil capacity Fuel tank:580L Hydraulic oil tank:280L Hydraulic system:353L Engine oil change volume:28.5L Coolant:31.1L Main body size Total transportation length:11200mm Total transportation width:3400mm Total transportation height:3420mm The total height of the cab is 3160mm Counterweight ground clearance:1190mm Track grounding length:4050mm Total track length:4980mm Track plate width:600/800mm Total width of the track:3200mm Track gauge:2600mm Minimum ground clearance:500mm Minimum turning radius of the front working device:4370mm Rear end turning radius:3500mm Scope of work Maximum excavation radius:11,260 mm Maximum excavation radius of the shutdown face:11060mm Maximum excavation depth:7,560mm Maximum excavation height:10,580mm Maximum unloading height:7370mm Maximum vertical excavation depth:6610mm Maximum excavation depth (2.5 meters level):7400mm
