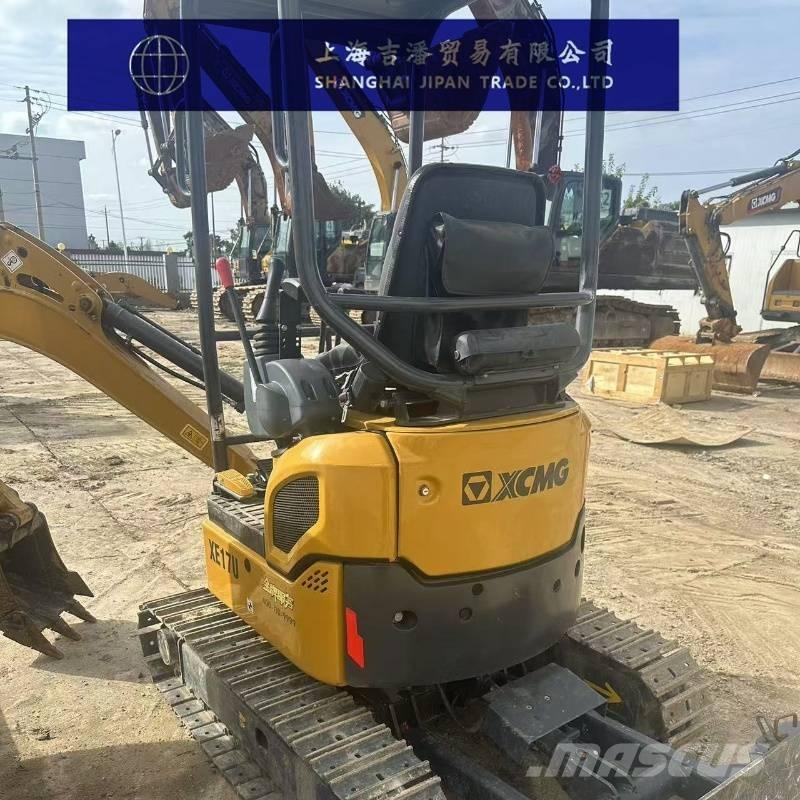

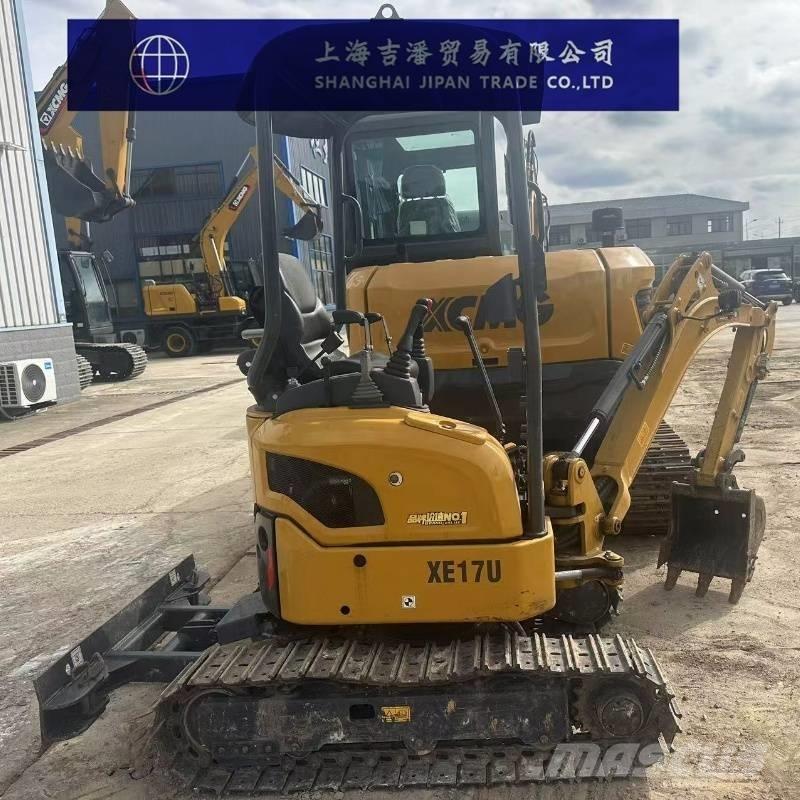

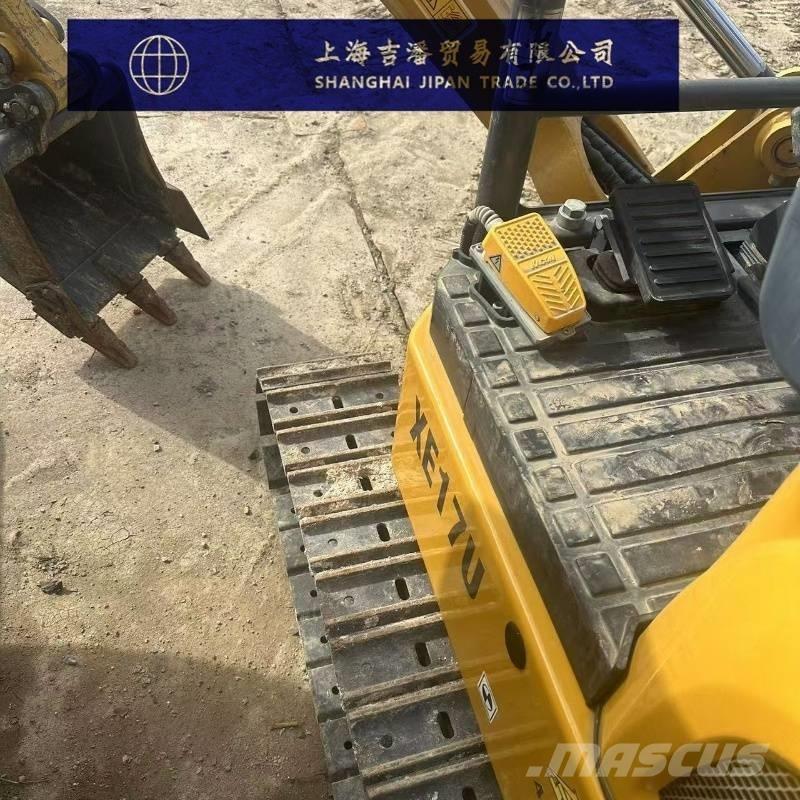

XCMG XE 17 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Overall machine parameters Operating weight: 1795kg Bucket capacity: 0.04m³ Transportation status and external dimensions (length × width × height) : 3560×1240×2350mm Track gauge: 760-1010mm (adjustable) Track grounding length: 1270mm Track plate width: 230mm Rear end turning radius: 620mm Ground clearance: 145mm The height of the turntable from the ground: 450mm Engine parameters Model: D902-EF08 Rated power: 11.8kW Rated speed: 2300r/min Number of cylinders: 3 Engine type: In-line, water-cooled, 4-stroke Operation parameters Bucket digging force: 15.8kN Bucket shaft digging force: 9.6kN Maximum excavation radius: 3900mm Maximum excavation depth: 2290mm Maximum excavation height: 3475mm Maximum unloading height: 2415mm Maximum vertical excavation depth: 1750mm Walking parameters Theoretical speed forward (high speed/low speed) : 3.1/2.1km/h Theoretical speed regression (high speed/low speed) : 3.1/2.1km/h Climbing ability: 58% Average ground pressure: 28.5kPa Hydraulic system parameters Main hydraulic pump model: AL A10V 0 28LA6DS/53R-VSC12N00-S2973 Flow rate of the main hydraulic pump: 64.4L/min Set working pressure: 24MPa
