Vahva FORTI 200

KDV hariç fiyat

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Perdah makinalari
Vahva FORTI 200 Perdah makinalari
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Perdah makinalari
Marka / model
Vahva FORTI 200
Kayıt yılı
2015
Extra options
Ex demo
Makinenin yeri
Saue
Ülke
Estonya
Genel durum düzeyi
1
2
3
4
5
Mascus ID
24BE0111

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Stok no.
VR50000
Servis geçmişi
Evet
Takip eden makinalara uygun olma
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

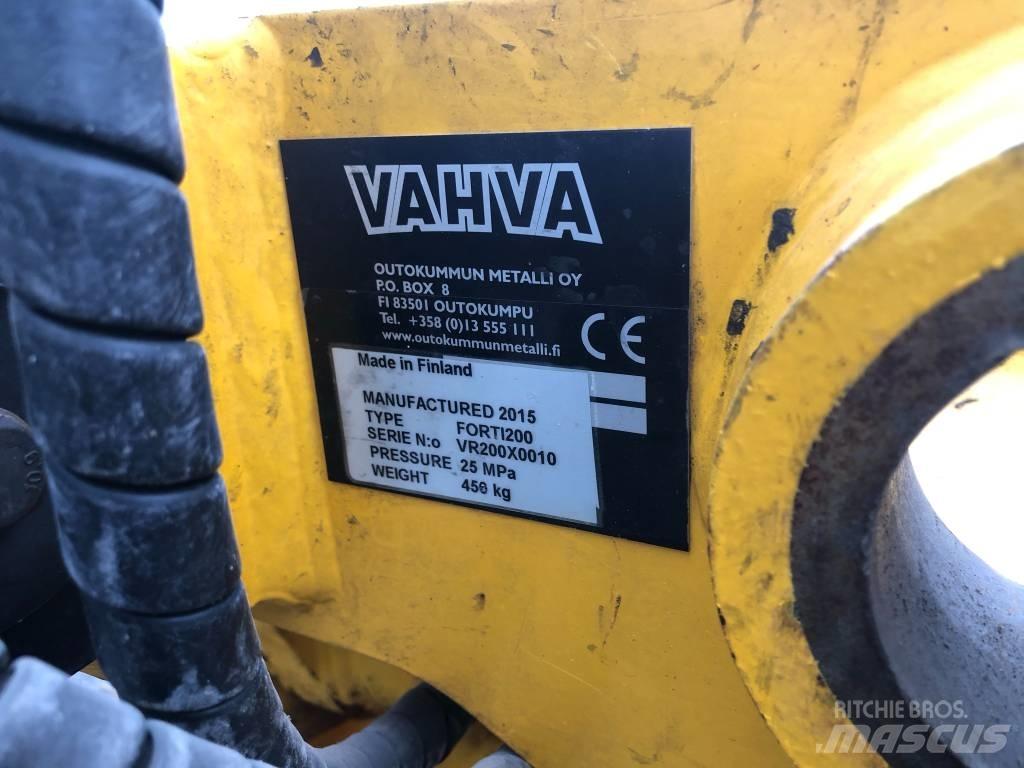

Üretici seri no.
VR200X0010
Çalışma Basıncı
250 çubuk
İstenen hidrolik güç
80 l/dak
Taşıma Ağırlığı
450 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
990 x 720 x 280 mm
Production country
Finlandiya
Delivery terms
EXW
Certificates
CE
Diğer bilgiler

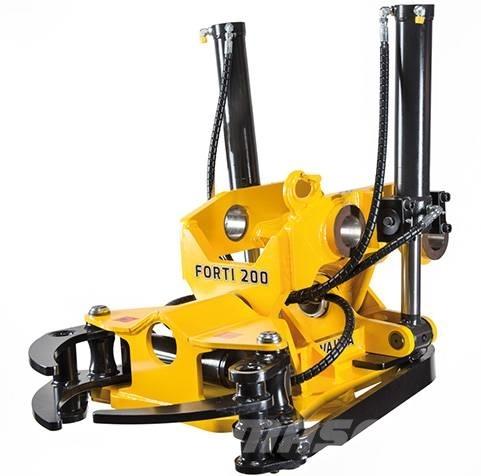

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Diğerlerini göster

Sautec AS

Tule 10 76505 Saue Harjumaa Estonya
