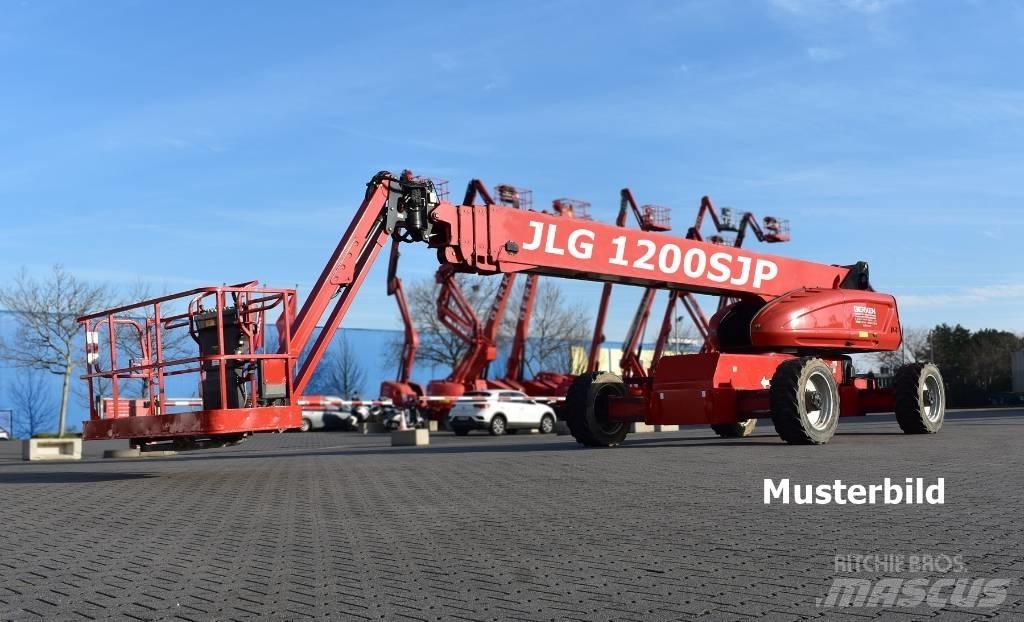

JLG 1200 SJP
KDV hariç fiyat
Yazdır
BILGI
Ürün grubu
Teleskopik personel platformları
Marka / model
JLG 1200 SJP
Kayıt yılı
2008
Makinenin yeri
auf Anfrage
Ülke
Almanya
Genel durum düzeyi
1
2
3
4
5
Mascus ID
DDC72B46
FIYATLANDIRMA
Para birimi seç
AYRINTILAR
Stok no.
69180
Working height
38,8 m
Güç tipi
Dizel
Max horizontal reach
22,9 m
Çekiş Tipi
4 Tekerlek Çekişli
Brüt ağırlık
18.360 kilogram
Kaldırma kapasitesi
450 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
13750 x 2500 x 3040 mm
Production country
A.B.D.
Delivery terms
EXW
Certificates
CE
Diğer bilgiler
Manufacturer: JLG
Model: 1200SJP
Year of build: 2008
Condition: Used
Data:
Max. working height: 38,83 m
Max. platform height: 36,83m
Max. reach: 22,94 m
Drive type: Diesel
Total dimensions LxWxH: 13,75 x 2,50 x 3,04 m
Length of transport position: 10,70 m
Height transport position: 3,04 m
Track widining: 3,80m
Platform dimensions LxW: 2,44 x 0,92 m
Max. basket load: 450 kg
Swivel range: 360°
Overhang: 0,0 m
Movable up to working height: 38,83 m
Max. Pitch angle: 45 %
Wheel pressure (Support pressure): 113,4 kN
Ground clearance: 0,29 m
Own weight: 18.360 kg
Special features: Rotatable work basket 180° basket arm/vertical rotation angle 180° all-wheel drive pendulum axle Advantage of permanently installed generator for 230 V socket in the basket high basket load (450 kg) basket arm can be swiveled horizontally and vertically
GS Arbeitsbühnen GmbH
Jagenbergstraße 21 41468 Neuss Nordrhein-Westfalen Almanya
