Shantui SD22F

KDV hariç fiyat

Talep Üzerine Fiyat

Compnay LOGO
Images6

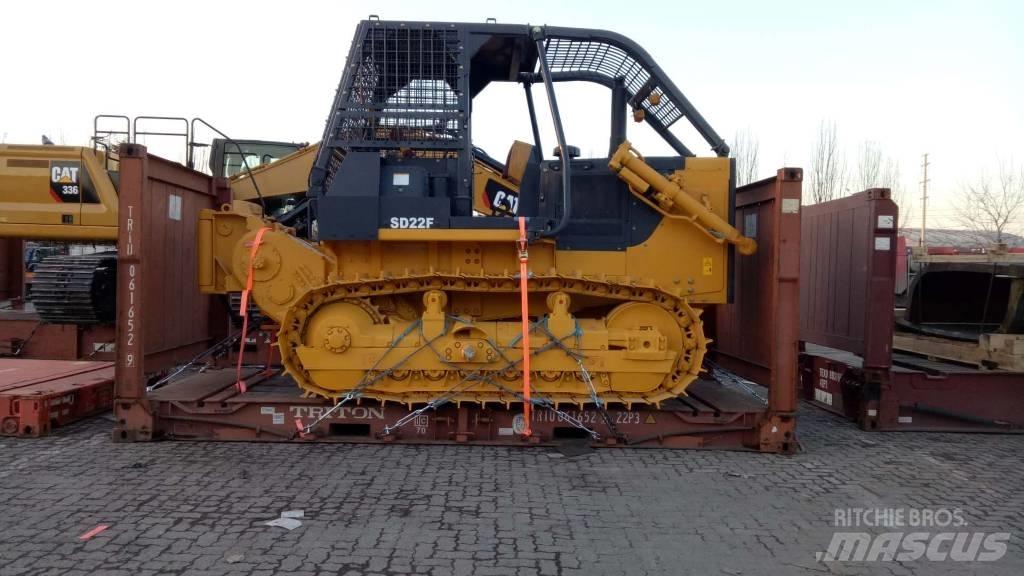

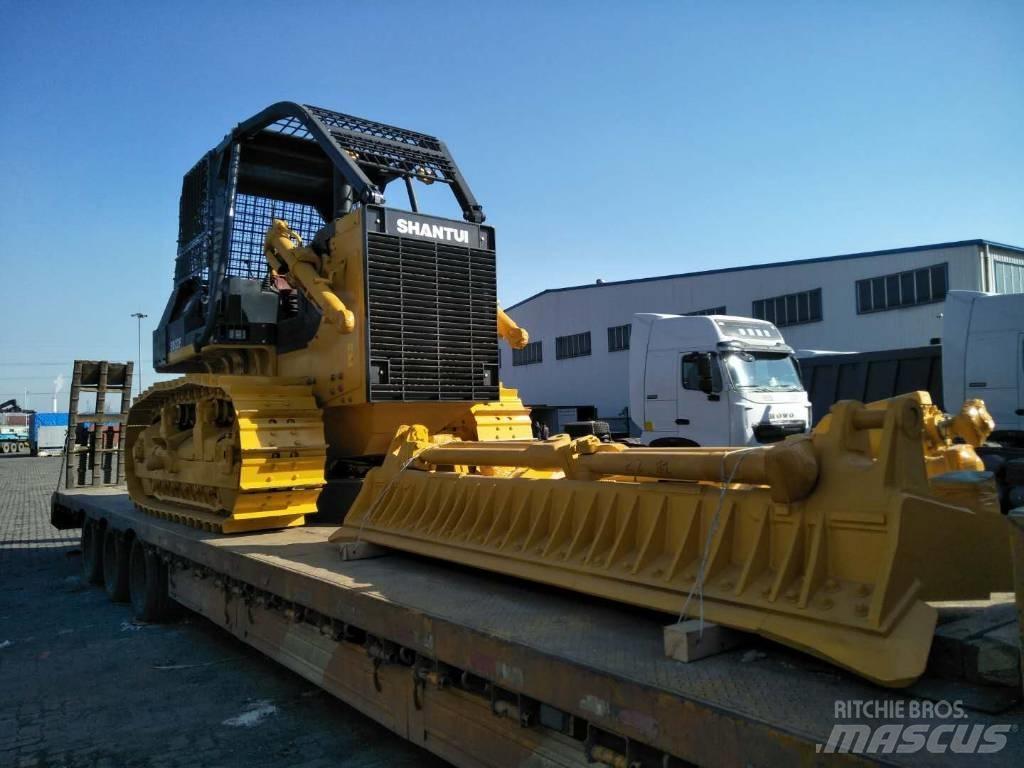

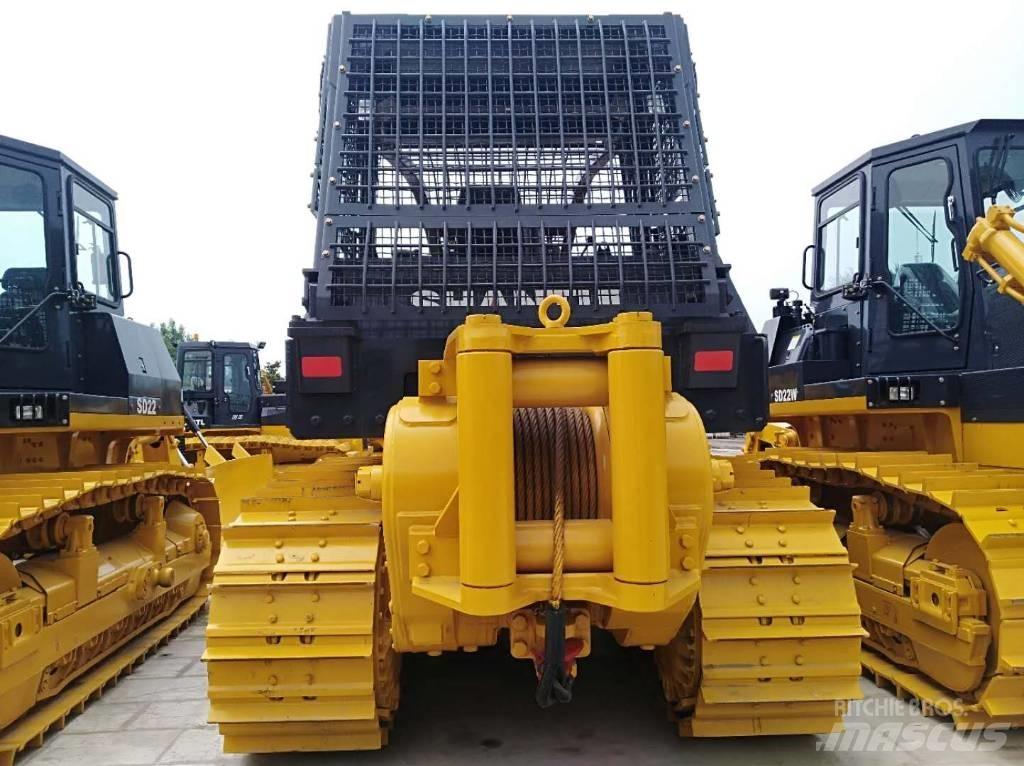

SHANTUI SD22F Ağaç kesici istifleyiciler
SHANTUI SD22F Ağaç kesici istifleyiciler
SHANTUI SD22F Ağaç kesici istifleyiciler
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Ağaç kesici istifleyiciler
Marka / model
Shantui SD22F
Kayıt yılı
2020
Kullanım saati
5 h
Durum
New/unused
Makinenin yeri
jining
Ülke
Çin
Genel durum düzeyi
1
2
3
4
5
Mascus ID
06656305

AYRINTILAR

Son ekspertiz
yes
Motor
Cummins NT855-C280S10
Motor gücü
175 kW (238 hp)
Şanzıman
SHANTUI
Taşıma Ağırlığı
24.700 kilogram
Taşıma Ölçüleri (EnxBoyxYükseklik)
5495×3725×3402 m
Production country
Çin
Aksesuarlar
Vinç
Direksiyon simidi
Diğer bilgiler
China shantui bulldozer SD22F forest lumbering type with winch  Shantui bulldozers are the most cost-effective products comparing with other brands bulldozers around the world. Shantui Large Horsepower Forest Lumbering Type Bulldozer (SD22F) The SD22F forest type bulldozer is specially designed for operations in wooded areas. The SD22F has advanced performance, high reliability, low fuel consumption and convenient maintenance. It's equipped with a ROPS canopy and cab, a wider track (610 mm) and a mechanical winch. The SD22F has excellent maneuverability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas. Following is specifications for 220HP series of SD22F bulldozers  [Product Parameter] PRODUCT SD22F (FOREST LOGGING) PERFORMANCE PARAMETERS Operatiing   Weight (kg) 24700 Rated horsepower (kw/hp) 175/1800 Minimum turning radius (mm) 3300 Ground pressure (kpa) 66 ENGINE Model Chongqing  cummins NT855-C280S10 Emission China   I Type In-line,direct   injection,water cooled,4-cycles,turbocharged No.of cylinders×Bore×stroke (mm×mm) 6×140×152 Piston displacement (L) 14 Horsepower/rpm (kw/rpm) 175/1800 Maximum torque (N.m/r/min) 1030/1250 DIMENSIONS Length(mm) 5495 Width(mm) 3725 Height(mm) 3402 TRAVELING PERFORMANCE Forward/Reverse(km/h) F1:0-3.6   F2:0-6.5 F3:0-11.2 R1:0-4.3  R2:0-7.7   R3:0-13.2 Gradeability(deg) 30 Clearance(mm) 405 TRANSMISSION Torque   convertor  3-element, single stage, 1-phase Gear box Planetary   gear and powershift transmission, hydraulically actuated, forced lubrication Main drive Spiral   bevel gear, single-stage speed reduction, splash lubrication Steering clutch Wet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brake Brake  Wet, contracting band,foot operated with   hydraulic booster Final driver  spur gear,double reduction ,splash   lubrication UNDERCARRIAGE Suspension Swing   type of sprayed beam,suspended structure of equalizer bar Track gauge (mm) 2000 Shoe width (mm) 560 Track length on ground (mm) 3050 Number of shoes (each side) 41 Pitch (mm) 216 Carrier rollers (each side) 2 Track rollers (each side) 7 WORKING HYDRAULIC SYSTEM Pressure   (MPa) 14 Working pump Gear   pump Valve Multi-way   valve Bore of blade lift cylinder (mm) φ120  Bore of blade tilt cylinder (mm) φ200  TANK CAPACITY Fuel   tank capacity (L) 450 Working hydraulic tank capacity (L) 110 WORKING EQUIPMENT Blade   width (mm) 3725 Blade height (mm) 1315 Blade capacity (m³) 6.4 Max.Drop below ground of blade 1210 Lift height of blade 540 Type of ripper Single   shank/3 shanks Maximum digging depth of ripper (mm) Single   695 Three 666 Maximum lifting height of ripper (mm) Single   515 Three 555 [Product Strengths] 1.This product is equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms. 2.The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety. [Applicable Working Conditions] Forest lumbering and road barrier clearance operations [Current sales conditions] As one of the most popular Shantui products, this bulldozer has been sold all over the world.Diğerlerini göster
