Rinieri EB 1532 4

KDV hariç fiyat

Images5
Rinieri EB 1532 4 Ön yükleyici atasmanlar
Rinieri EB 1532 4 Ön yükleyici atasmanlar
Rinieri EB 1532 4 Ön yükleyici atasmanlar
FavoriteFavori
shareShare
Save searchAramayı kaydet
Yazdır

BILGI

Ürün grubu
Ön yükleyici atasmanlar
Marka / model
Rinieri EB 1532 4
Kayıt yılı
2015
Durum
Demo
Makinenin yeri
Degeberga
Ülke
Isveç
Genel durum düzeyi
1
2
3
4
5
Mascus ID
ED5802F0

FIYATLANDIRMA

Para birimi seç

AYRINTILAR

Stok no.
6EB15324
Aksesuar tipi
Hay Forks
Üretici seri no.
28311
Taşıma Ağırlığı
500 kilogram
Garanti
Ingen
Production country
İtalya
Diğer bilgiler

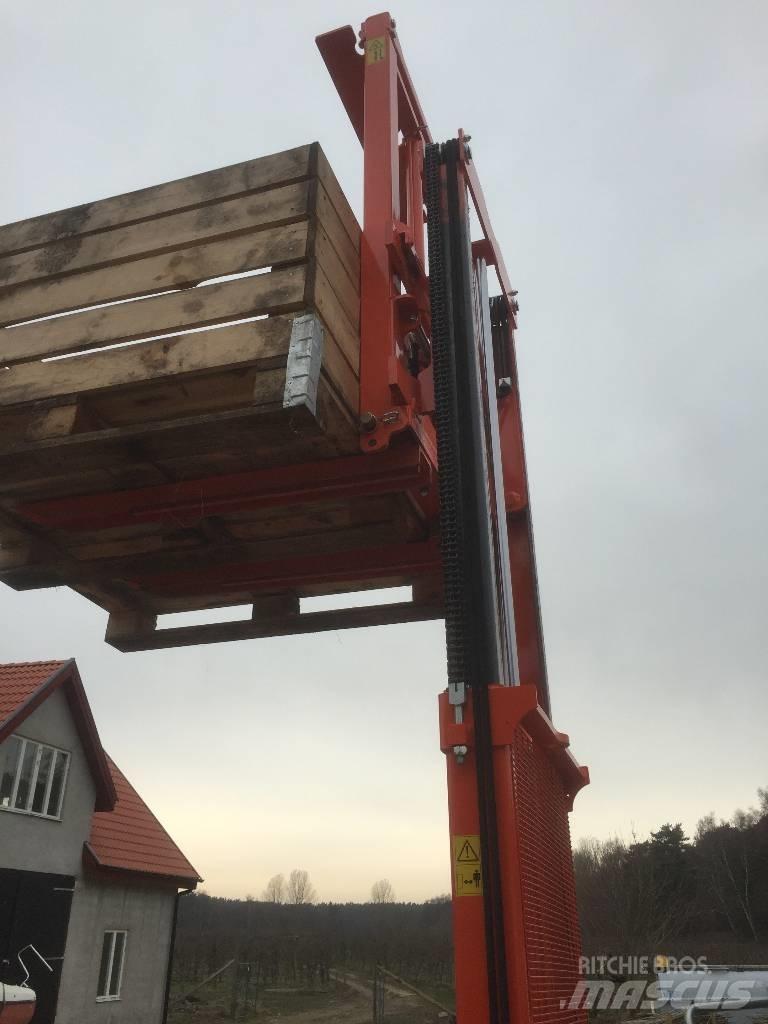

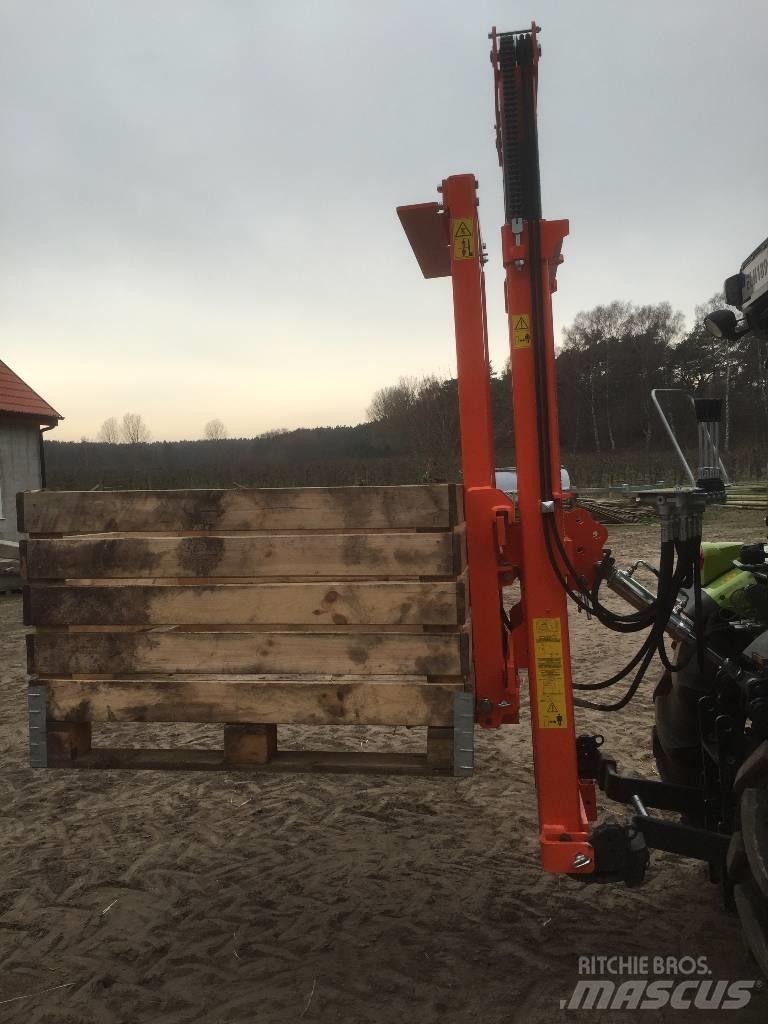

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingDiğerlerini göster

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Isveç
